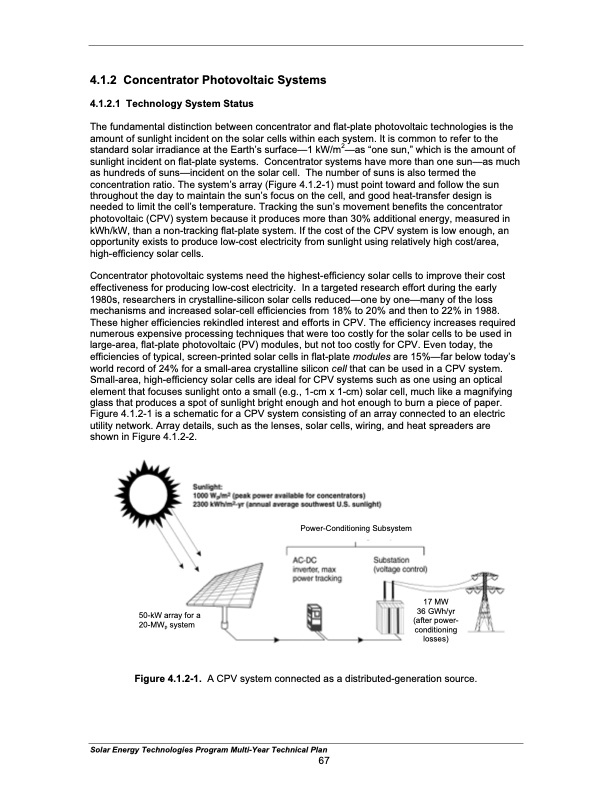

4.1.2 Concentrator Photovoltaic Systems 4.1.2.1 Technology System Status The fundamental distinction between concentrator and flat-plate photovoltaic technologies is the amount of sunlight incident on the solar cells within each system. It is common to refer to the standard solar irradiance at the Earth’s surface—1 kW/m2—as “one sun,” which is the amount of sunlight incident on flat-plate systems. Concentrator systems have more than one sun—as much as hundreds of suns—incident on the solar cell. The number of suns is also termed the concentration ratio. The system’s array (Figure 4.1.2-1) must point toward and follow the sun throughout the day to maintain the sun’s focus on the cell, and good heat-transfer design is needed to limit the cell’s temperature. Tracking the sun’s movement benefits the concentrator photovoltaic (CPV) system because it produces more than 30% additional energy, measured in kWh/kW, than a non-tracking flat-plate system. If the cost of the CPV system is low enough, an opportunity exists to produce low-cost electricity from sunlight using relatively high cost/area, high-efficiency solar cells. Concentrator photovoltaic systems need the highest-efficiency solar cells to improve their cost effectiveness for producing low-cost electricity. In a targeted research effort during the early 1980s, researchers in crystalline-silicon solar cells reduced—one by one—many of the loss mechanisms and increased solar-cell efficiencies from 18% to 20% and then to 22% in 1988. These higher efficiencies rekindled interest and efforts in CPV. The efficiency increases required numerous expensive processing techniques that were too costly for the solar cells to be used in large-area, flat-plate photovoltaic (PV) modules, but not too costly for CPV. Even today, the efficiencies of typical, screen-printed solar cells in flat-plate modules are 15%—far below today’s world record of 24% for a small-area crystalline silicon cell that can be used in a CPV system. Small-area, high-efficiency solar cells are ideal for CPV systems such as one using an optical element that focuses sunlight onto a small (e.g., 1-cm x 1-cm) solar cell, much like a magnifying glass that produces a spot of sunlight bright enough and hot enough to burn a piece of paper. Figure 4.1.2-1 is a schematic for a CPV system consisting of an array connected to an electric utility network. Array details, such as the lenses, solar cells, wiring, and heat spreaders are shown in Figure 4.1.2-2. 5 f f o o r r a a y y s s Figure 1. Schematic of a complete concentrator photovoltaic system. y t t e e m m r s 2 2 Figure 4.1.2-1. A CPV system connected as a distributed-generation source. Solar Energy Technologies Program Multi-Year Technical Plan 0 0 - - M M W W y p p s c c o o n n d d i i t t i i o o n n i i n n g g P P Power-Conditioning Subsystem o o w w e e r r - - C C o o n n d d i i t t i i o o n n i i n n g g S S u u b b s s y t t e e m m 67 y s s ( r 17 MW r 1 1 3 3 7 7 M M W W a a 6 6 G / / y y r r f f t t e e w G h r p p o o w W W 36 GWh/yr l l o o s s s s e e s s ) ) (after power- conditioning losses) h 5 a 0 0 - - k k W a W a r r r r a ( - - e ePDF Image | Solar Energy Technologies Program
