PDF Publication Title:
Text from PDF Page: 089

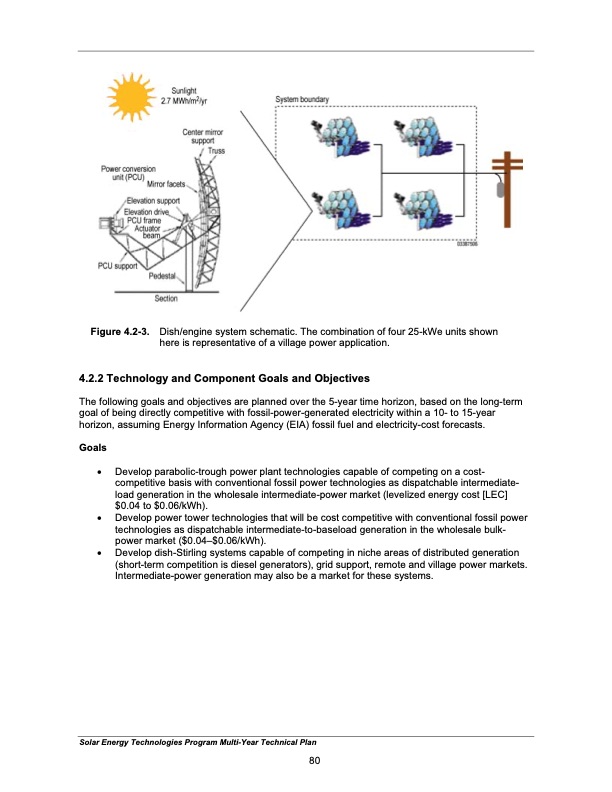

Figure 4.2-3. Dish/engine system schematic. The combination of four 25-kWe units shown here is representative of a village power application. 4.2.2 Technology and Component Goals and Objectives The following goals and objectives are planned over the 5-year time horizon, based on the long-term goal of being directly competitive with fossil-power-generated electricity within a 10- to 15-year horizon, assuming Energy Information Agency (EIA) fossil fuel and electricity-cost forecasts. Goals • Develop parabolic-trough power plant technologies capable of competing on a cost- competitive basis with conventional fossil power technologies as dispatchable intermediate- load generation in the wholesale intermediate-power market (levelized energy cost [LEC] $0.04 to $0.06/kWh). • Develop power tower technologies that will be cost competitive with conventional fossil power technologies as dispatchable intermediate-to-baseload generation in the wholesale bulk- power market ($0.04–$0.06/kWh). • Develop dish-Stirling systems capable of competing in niche areas of distributed generation (short-term competition is diesel generators), grid support, remote and village power markets. Intermediate-power generation may also be a market for these systems. Solar Energy Technologies Program Multi-Year Technical Plan 80PDF Image | Solar Energy Technologies Program
