PDF Publication Title:

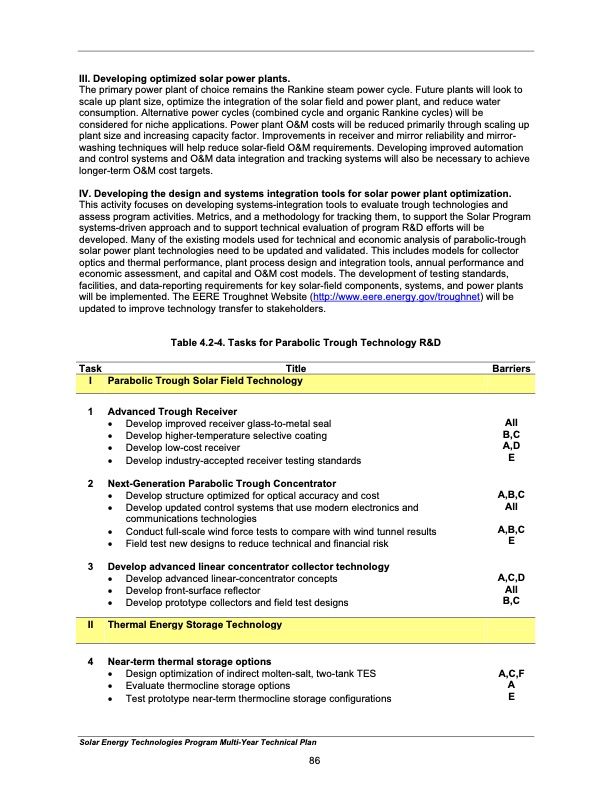

Text from PDF Page: 095
III. Developing optimized solar power plants. The primary power plant of choice remains the Rankine steam power cycle. Future plants will look to scale up plant size, optimize the integration of the solar field and power plant, and reduce water consumption. Alternative power cycles (combined cycle and organic Rankine cycles) will be considered for niche applications. Power plant O&M costs will be reduced primarily through scaling up plant size and increasing capacity factor. Improvements in receiver and mirror reliability and mirror- washing techniques will help reduce solar-field O&M requirements. Developing improved automation and control systems and O&M data integration and tracking systems will also be necessary to achieve longer-term O&M cost targets. IV. Developing the design and systems integration tools for solar power plant optimization. This activity focuses on developing systems-integration tools to evaluate trough technologies and assess program activities. Metrics, and a methodology for tracking them, to support the Solar Program systems-driven approach and to support technical evaluation of program R&D efforts will be developed. Many of the existing models used for technical and economic analysis of parabolic-trough solar power plant technologies need to be updated and validated. This includes models for collector optics and thermal performance, plant process design and integration tools, annual performance and economic assessment, and capital and O&M cost models. The development of testing standards, facilities, and data-reporting requirements for key solar-field components, systems, and power plants will be implemented. The EERE Troughnet Website (http://www.eere.energy.gov/troughnet) will be updated to improve technology transfer to stakeholders. Table 4.2-4. Tasks for Parabolic Trough Technology R&D Task Title I Parabolic Trough Solar Field Technology 1 Advanced Trough Receiver • Develop improved receiver glass-to-metal seal • Develop higher-temperature selective coating • Develop low-cost receiver • Develop industry-accepted receiver testing standards 2 Next-Generation Parabolic Trough Concentrator • Develop structure optimized for optical accuracy and cost • Develop updated control systems that use modern electronics and communications technologies • Conduct full-scale wind force tests to compare with wind tunnel results • Field test new designs to reduce technical and financial risk 3 Develop advanced linear concentrator collector technology • Develop advanced linear-concentrator concepts • Develop front-surface reflector • Develop prototype collectors and field test designs II Thermal Energy Storage Technology 4 Near-term thermal storage options • Design optimization of indirect molten-salt, two-tank TES • Evaluate thermocline storage options • Test prototype near-term thermocline storage configurations Solar Energy Technologies Program Multi-Year Technical Plan Barriers All B,C A,D E A,B,C All A,B,C E A,C,D All B,C A,C,F A E 86PDF Image | Solar Energy Technologies Program
PDF Search Title:
Solar Energy Technologies ProgramOriginal File Name Searched:
33875.pdfDIY PDF Search: Google It | Yahoo | Bing
