PDF Publication Title:
Text from PDF Page: 054

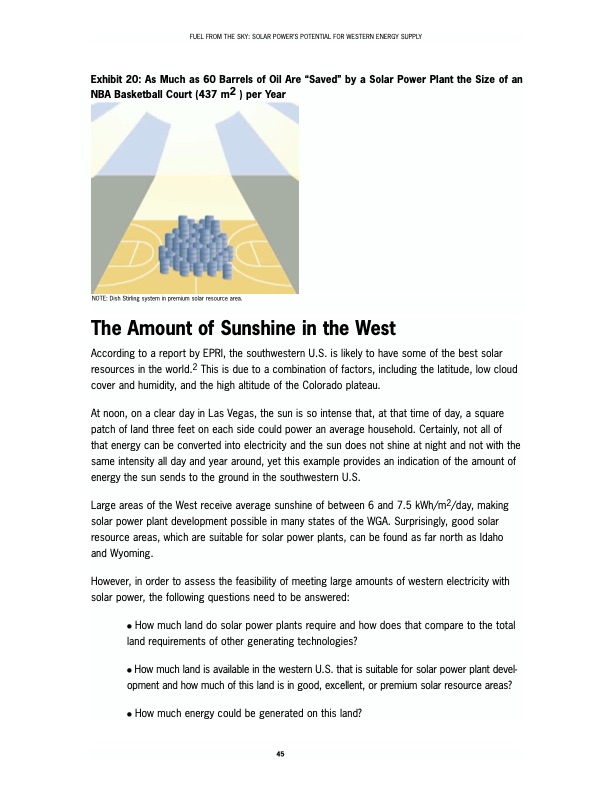

FUEL FROM THE SKY: SOLAR POWER’S POTENTIAL FOR WESTERN ENERGY SUPPLY Exhibit 20: As Much as 60 Barrels of Oil Are “Saved” by a Solar Power Plant the Size of an NBA Basketball Court (437 m2 ) per Year NOTE: Dish Stirling system in premium solar resource area. The Amount of Sunshine in the West According to a report by EPRI, the southwestern U.S. is likely to have some of the best solar resources in the world.2 This is due to a combination of factors, including the latitude, low cloud cover and humidity, and the high altitude of the Colorado plateau. At noon, on a clear day in Las Vegas, the sun is so intense that, at that time of day, a square patch of land three feet on each side could power an average household. Certainly, not all of that energy can be converted into electricity and the sun does not shine at night and not with the same intensity all day and year around, yet this example provides an indication of the amount of energy the sun sends to the ground in the southwestern U.S. Large areas of the West receive average sunshine of between 6 and 7.5 kWh/m2/day, making solar power plant development possible in many states of the WGA. Surprisingly, good solar resource areas, which are suitable for solar power plants, can be found as far north as Idaho and Wyoming. However, in order to assess the feasibility of meeting large amounts of western electricity with solar power, the following questions need to be answered: ● How much land do solar power plants require and how does that compare to the total land requirements of other generating technologies? ● How much land is available in the western U.S. that is suitable for solar power plant devel- opment and how much of this land is in good, excellent, or premium solar resource areas? ● How much energy could be generated on this land? 45PDF Image | Solar Fuel From The Sky
