PDF Publication Title:
Text from PDF Page: 057

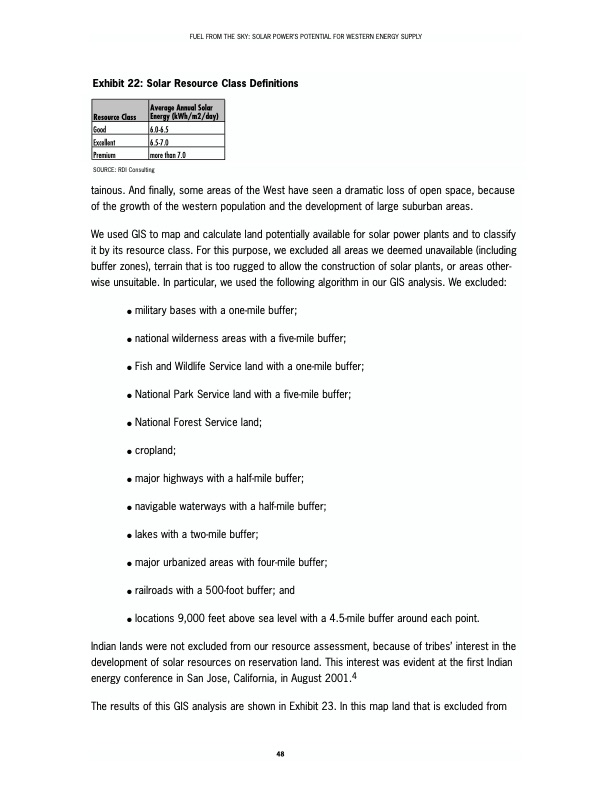

FUEL FROM THE SKY: SOLAR POWER’S POTENTIAL FOR WESTERN ENERGY SUPPLY Exhibit 22: Solar Resource Class Definitions Resource Class Good Excellent Premium Average Annual Solar Energy (kWh/m2/day) 6.0-6.5 6.5-7.0 more than 7.0 SOURCE: RDI Consulting tainous. And finally, some areas of the West have seen a dramatic loss of open space, because of the growth of the western population and the development of large suburban areas. We used GIS to map and calculate land potentially available for solar power plants and to classify it by its resource class. For this purpose, we excluded all areas we deemed unavailable (including buffer zones), terrain that is too rugged to allow the construction of solar plants, or areas other- wise unsuitable. In particular, we used the following algorithm in our GIS analysis. We excluded: ● military bases with a one-mile buffer; ● national wilderness areas with a five-mile buffer; ● Fish and Wildlife Service land with a one-mile buffer; ● National Park Service land with a five-mile buffer; ● National Forest Service land; ● cropland; ● major highways with a half-mile buffer; ● navigable waterways with a half-mile buffer; ● lakes with a two-mile buffer; ● major urbanized areas with four-mile buffer; ● railroads with a 500-foot buffer; and ● locations 9,000 feet above sea level with a 4.5-mile buffer around each point. Indian lands were not excluded from our resource assessment, because of tribes’ interest in the development of solar resources on reservation land. This interest was evident at the first Indian energy conference in San Jose, California, in August 2001.4 The results of this GIS analysis are shown in Exhibit 23. In this map land that is excluded from 48PDF Image | Solar Fuel From The Sky
