PDF Publication Title:
Text from PDF Page: 069

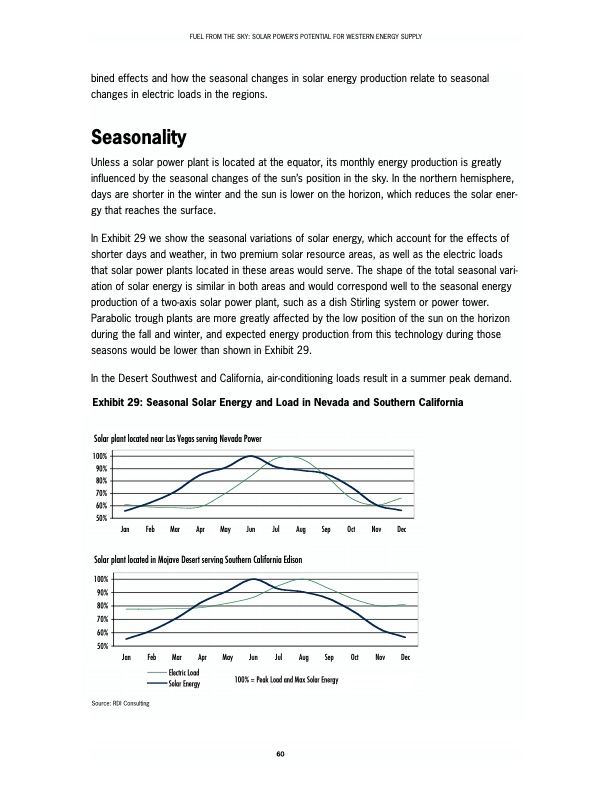

FUEL FROM THE SKY: SOLAR POWER’S POTENTIAL FOR WESTERN ENERGY SUPPLY bined effects and how the seasonal changes in solar energy production relate to seasonal changes in electric loads in the regions. Seasonality Unless a solar power plant is located at the equator, its monthly energy production is greatly influenced by the seasonal changes of the sun’s position in the sky. In the northern hemisphere, days are shorter in the winter and the sun is lower on the horizon, which reduces the solar ener- gy that reaches the surface. In Exhibit 29 we show the seasonal variations of solar energy, which account for the effects of shorter days and weather, in two premium solar resource areas, as well as the electric loads that solar power plants located in these areas would serve. The shape of the total seasonal vari- ation of solar energy is similar in both areas and would correspond well to the seasonal energy production of a two-axis solar power plant, such as a dish Stirling system or power tower. Parabolic trough plants are more greatly affected by the low position of the sun on the horizon during the fall and winter, and expected energy production from this technology during those seasons would be lower than shown in Exhibit 29. In the Desert Southwest and California, air-conditioning loads result in a summer peak demand. Exhibit 29: Seasonal Solar Energy and Load in Nevada and Southern California SoSlaolrarpplalantt 100% 90% 80% 70% 60% 50% locatteeddnneaeraLraLs aVsegVaesgsaersvisnegrvNienvgadNaePvoawdear Power Jan Feb Mar Apr Dec Solar plant located in Mojave Desert serving Southern California Edison Solar plant located in Mojave Desert serving Southern California Edison 100% 90% 80% 70% 60% 50% Mar Apr Electric Load Solar Energy May Jun May Jun Jul Aug Sep Jul Aug Sep 100% = Peak Load and Max Solar Energy Oct Nov Jan Feb Dec Oct Nov Source: RDI Consulting 60PDF Image | Solar Fuel From The Sky
