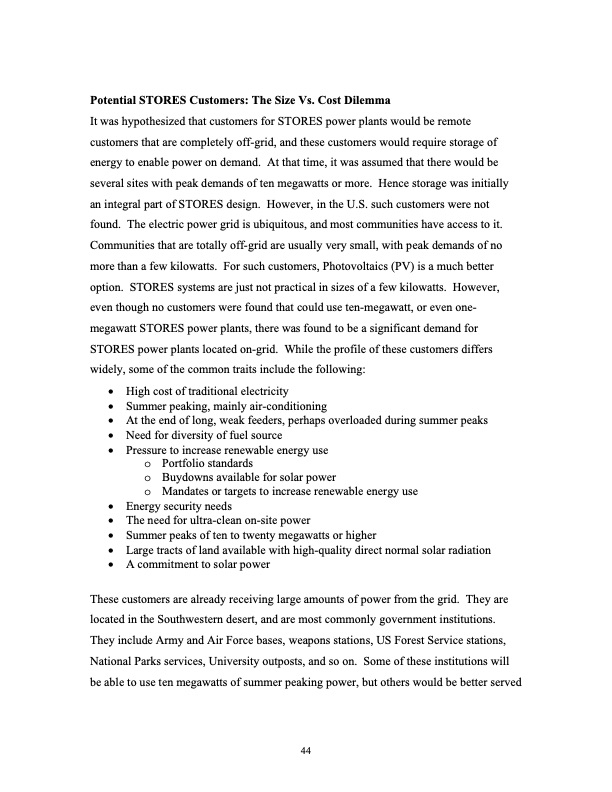

Potential STORES Customers: The Size Vs. Cost Dilemma It was hypothesized that customers for STORES power plants would be remote customers that are completely off-grid, and these customers would require storage of energy to enable power on demand. At that time, it was assumed that there would be several sites with peak demands of ten megawatts or more. Hence storage was initially an integral part of STORES design. However, in the U.S. such customers were not found. The electric power grid is ubiquitous, and most communities have access to it. Communities that are totally off-grid are usually very small, with peak demands of no more than a few kilowatts. For such customers, Photovoltaics (PV) is a much better option. STORES systems are just not practical in sizes of a few kilowatts. However, even though no customers were found that could use ten-megawatt, or even one- megawatt STORES power plants, there was found to be a significant demand for STORES power plants located on-grid. While the profile of these customers differs widely, some of the common traits include the following: • High cost of traditional electricity • Summer peaking, mainly air-conditioning • At the end of long, weak feeders, perhaps overloaded during summer peaks • Need for diversity of fuel source • Pressure to increase renewable energy use o Portfolio standards o Buydowns available for solar power o Mandates or targets to increase renewable energy use • Energy security needs • The need for ultra-clean on-site power • Summer peaks of ten to twenty megawatts or higher • Large tracts of land available with high-quality direct normal solar radiation • A commitment to solar power These customers are already receiving large amounts of power from the grid. They are located in the Southwestern desert, and are most commonly government institutions. They include Army and Air Force bases, weapons stations, US Forest Service stations, National Parks services, University outposts, and so on. Some of these institutions will be able to use ten megawatts of summer peaking power, but others would be better served 44PDF Image | Solar Trough Organic Rankine Electricity System (STORES) Stage 1: Power Plant Optimization and Economics
PDF Search Title:
Solar Trough Organic Rankine Electricity System (STORES) Stage 1: Power Plant Optimization and EconomicsOriginal File Name Searched:
