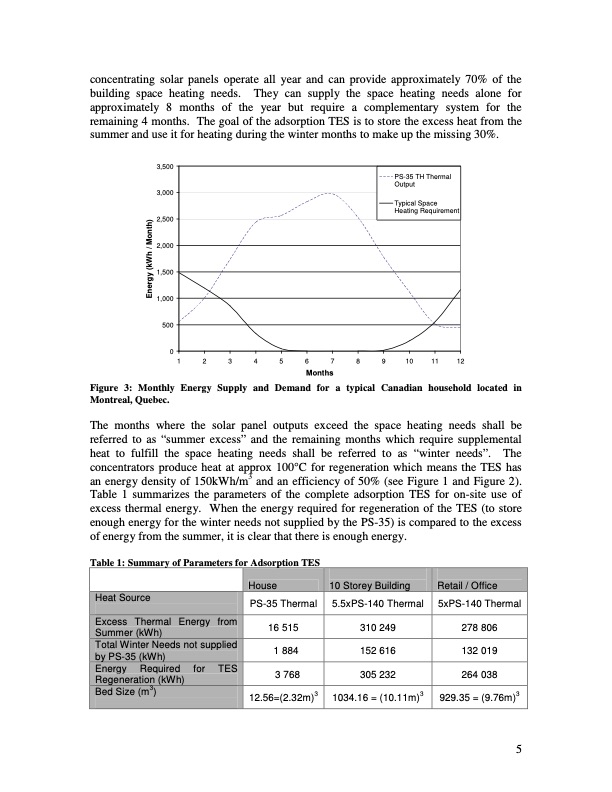

concentrating solar panels operate all year and can provide approximately 70% of the building space heating needs. They can supply the space heating needs alone for approximately 8 months of the year but require a complementary system for the remaining 4 months. The goal of the adsorption TES is to store the excess heat from the summer and use it for heating during the winter months to make up the missing 30%. 3,500 3,000 2,500 2,000 1,500 1,000 500 0 1 2 3 4 5 6 7 8 9 10 11 12 Months Figure 3: Monthly Energy Supply and Demand for a typical Canadian household located in Montreal, Quebec. The months where the solar panel outputs exceed the space heating needs shall be referred to as “summer excess” and the remaining months which require supplemental heat to fulfill the space heating needs shall be referred to as “winter needs”. The concentrators produce heat at approx 100°C for regeneration which means the TES has an energy density of 150kWh/m3 and an efficiency of 50% (see Figure 1 and Figure 2). Table 1 summarizes the parameters of the complete adsorption TES for on-site use of excess thermal energy. When the energy required for regeneration of the TES (to store enough energy for the winter needs not supplied by the PS-35) is compared to the excess of energy from the summer, it is clear that there is enough energy. PS-35 TH Thermal Output Typical Space Heating Requirement Table 1: Summary of Parameters for Adsorption TES PS-35 Thermal 16 515 1 884 3 768 12.56=(2.32m)3 5.5xPS-140 Thermal 310 249 152 616 305 232 1034.16 = (10.11m)3 5xPS-140 Thermal 278 806 132 019 264 038 929.35 = (9.76m)3 House 10 Storey Building Retail / Office Heat Source Excess Thermal Energy from Summer (kWh) Total Winter Needs not supplied by PS-35 (kWh) Energy Required for TES Regeneration (kWh) Bed Size (m3) 5 Energy (kWh / Month)PDF Image | Study of Adsorbent Energy Density and Regeneration for Long Term Thermal Energy Storage
