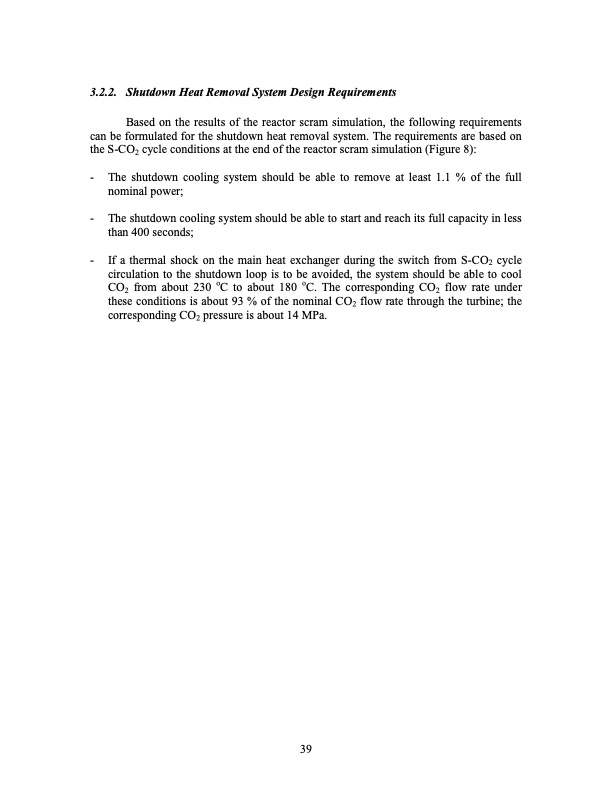

3.2.2. Shutdown Heat Removal System Design Requirements Based on the results of the reactor scram simulation, the following requirements can be formulated for the shutdown heat removal system. The requirements are based on the S-CO2 cycle conditions at the end of the reactor scram simulation (Figure 8): - The shutdown cooling system should be able to remove at least 1.1 % of the full nominal power; - The shutdown cooling system should be able to start and reach its full capacity in less than 400 seconds; - If a thermal shock on the main heat exchanger during the switch from S-CO2 cycle circulation to the shutdown loop is to be avoided, the system should be able to cool CO2 from about 230 oC to about 180 oC. The corresponding CO2 flow rate under these conditions is about 93 % of the nominal CO2 flow rate through the turbine; the corresponding CO2 pressure is about 14 MPa. 39PDF Image | Supercritical Carbon Dioxide Cycle Control Analysis
