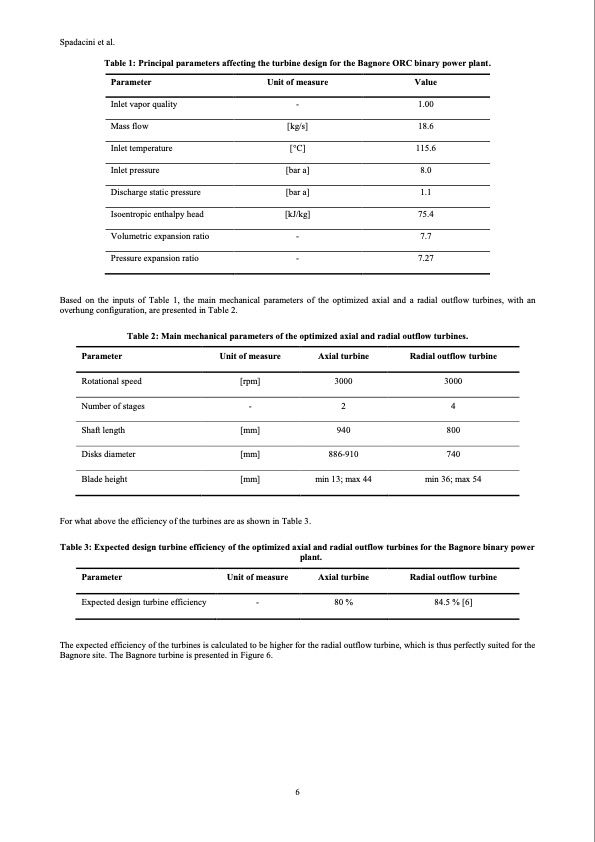

Text from PDF Page: 006
Spadacini et al. Table 1: Principal parameters affecting the turbine design for the Bagnore ORC binary power plant. Parameter Inlet vapor quality Mass flow Inlet temperature Inlet pressure Discharge static pressure Isoentropic enthalpy head Volumetric expansion ratio Pressure expansion ratio Unit of measure Value - 1.00 [kg/s] 18.6 [°C] [bar a] 8.0 [bar a] 1.1 [kJ/kg] 75.4 - 7.7 - 7.27 115.6 Based on the inputs of Table 1, the main mechanical parameters of the optimized axial and a radial outflow turbines, with an overhung configuration, are presented in Table 2. Table 2: Main mechanical parameters of the optimized axial and radial outflow turbines. Parameter Rotational speed Number of stages Shaft length Disks diameter Blade height Unit of measure [rpm] - [mm] [mm] [mm] Axial turbine 3000 2 940 886-910 min 13; max 44 Radial outflow turbine 3000 4 800 740 min 36; max 54 For what above the efficiency of the turbines are as shown in Table 3. Table 3: Expected design turbine efficiency of the optimized axial and radial outflow turbines for the Bagnore binary power plant. Parameter Unit of measure Axial turbine Radial outflow turbine Expected design turbine efficiency - 80 % 84.5 % [6] The expected efficiency of the turbines is calculated to be higher for the radial outflow turbine, which is thus perfectly suited for the Bagnore site. The Bagnore turbine is presented in Figure 6. 6PDF Image | The First Geothermal Organic Radial Outflow Turbines
