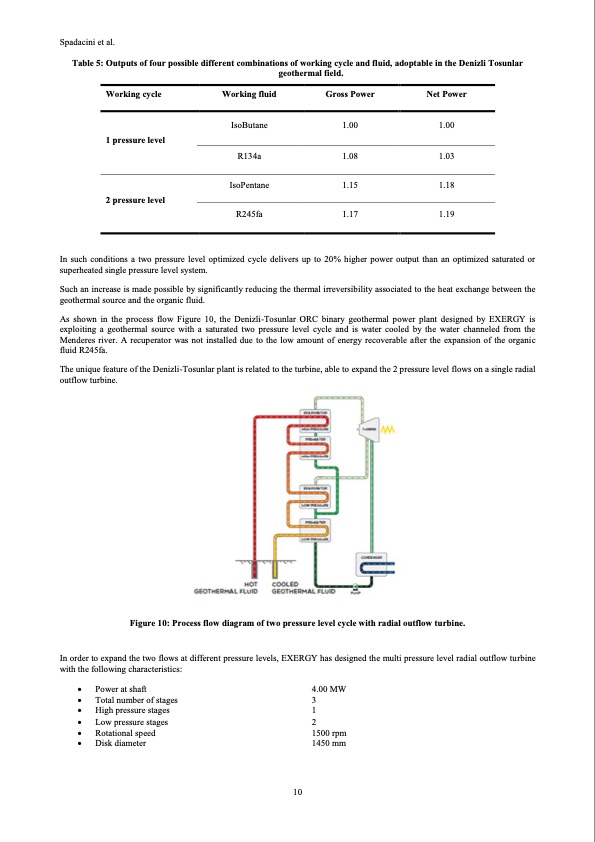

Spadacini et al. Table 5: Outputs of four possible different combinations of working cycle and fluid, adoptable in the Denizli Tosunlar geothermal field. Working cycle Working fluid Gross Power Net Power 1 pressure level IsoButane 1.00 1.00 R134a 1.08 1.03 2 pressure level IsoPentane 1.15 1.18 R245fa 1.17 1.19 In such conditions a two pressure level optimized cycle delivers up to 20% higher power output than an optimized saturated or superheated single pressure level system. Such an increase is made possible by significantly reducing the thermal irreversibility associated to the heat exchange between the geothermal source and the organic fluid. As shown in the process flow Figure 10, the Denizli-Tosunlar ORC binary geothermal power plant designed by EXERGY is exploiting a geothermal source with a saturated two pressure level cycle and is water cooled by the water channeled from the Menderes river. A recuperator was not installed due to the low amount of energy recoverable after the expansion of the organic fluid R245fa. The unique feature of the Denizli-Tosunlar plant is related to the turbine, able to expand the 2 pressure level flows on a single radial outflow turbine. Figure 10: Process flow diagram of two pressure level cycle with radial outflow turbine. In order to expand the two flows at different pressure levels, EXERGY has designed the multi pressure level radial outflow turbine with the following characteristics: Power at shaft Total number of stages High pressure stages Low pressure stages Rotational speed Disk diameter 4.00 MW 3 1 2 1500 rpm 1450 mm 10PDF Image | The First Geothermal Organic Radial Outflow Turbines
