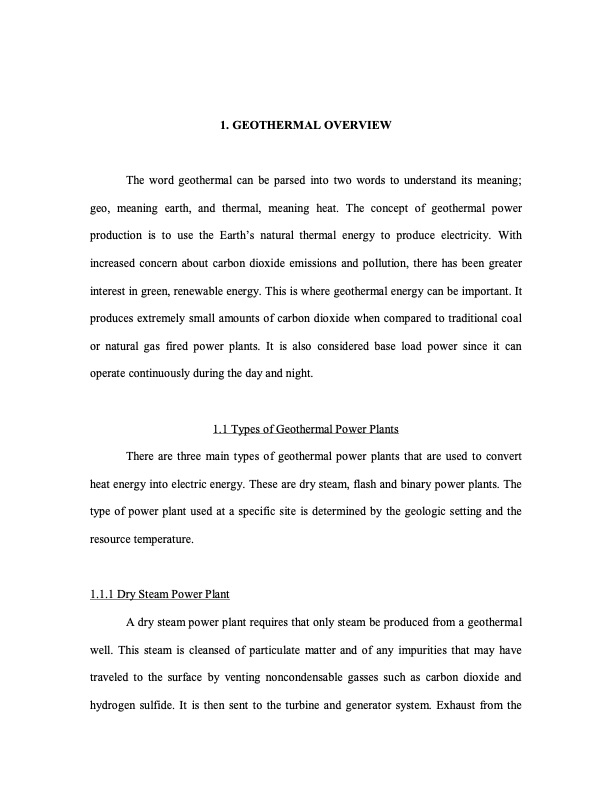

1. GEOTHERMAL OVERVIEW The word geothermal can be parsed into two words to understand its meaning; geo, meaning earth, and thermal, meaning heat. The concept of geothermal power production is to use the Earth’s natural thermal energy to produce electricity. With increased concern about carbon dioxide emissions and pollution, there has been greater interest in green, renewable energy. This is where geothermal energy can be important. It produces extremely small amounts of carbon dioxide when compared to traditional coal or natural gas fired power plants. It is also considered base load power since it can operate continuously during the day and night. 1.1 Types of Geothermal Power Plants There are three main types of geothermal power plants that are used to convert heat energy into electric energy. These are dry steam, flash and binary power plants. The type of power plant used at a specific site is determined by the geologic setting and the resource temperature. 1.1.1 Dry Steam Power Plant A dry steam power plant requires that only steam be produced from a geothermal well. This steam is cleansed of particulate matter and of any impurities that may have traveled to the surface by venting noncondensable gasses such as carbon dioxide and hydrogen sulfide. It is then sent to the turbine and generator system. Exhaust from thePDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
