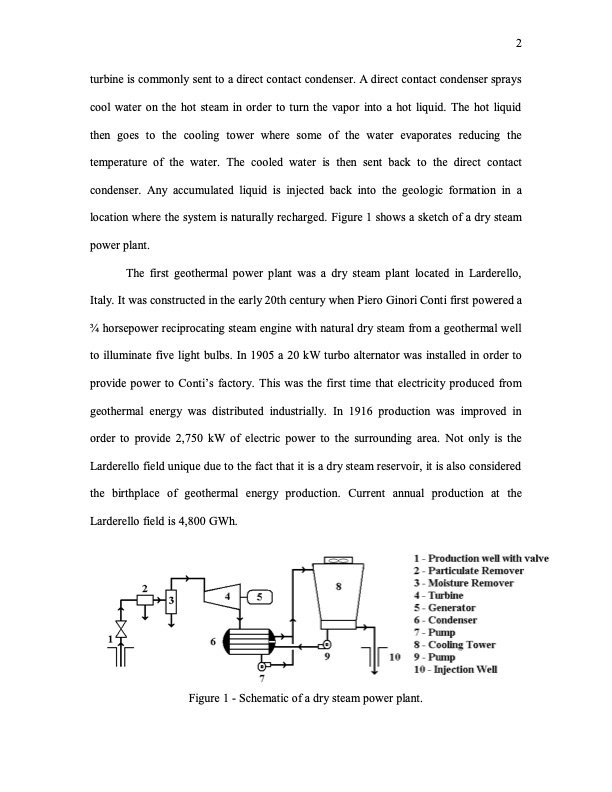

turbine is commonly sent to a direct contact condenser. A direct contact condenser sprays cool water on the hot steam in order to turn the vapor into a hot liquid. The hot liquid then goes to the cooling tower where some of the water evaporates reducing the temperature of the water. The cooled water is then sent back to the direct contact condenser. Any accumulated liquid is injected back into the geologic formation in a location where the system is naturally recharged. Figure 1 shows a sketch of a dry steam power plant. The first geothermal power plant was a dry steam plant located in Larderello, Italy. It was constructed in the early 20th century when Piero Ginori Conti first powered a 3⁄4 horsepower reciprocating steam engine with natural dry steam from a geothermal well to illuminate five light bulbs. In 1905 a 20 kW turbo alternator was installed in order to provide power to Conti’s factory. This was the first time that electricity produced from geothermal energy was distributed industrially. In 1916 production was improved in order to provide 2,750 kW of electric power to the surrounding area. Not only is the Larderello field unique due to the fact that it is a dry steam reservoir, it is also considered the birthplace of geothermal energy production. Current annual production at the Larderello field is 4,800 GWh. 2 Figure 1 - Schematic of a dry steam power plant.PDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
