PDF Publication Title:
Text from PDF Page: 020

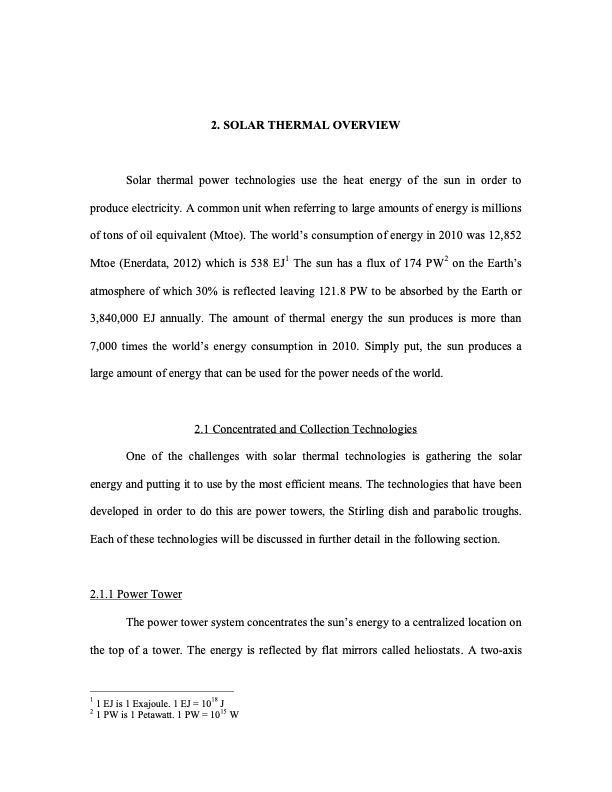

2. SOLAR THERMAL OVERVIEW Solar thermal power technologies use the heat energy of the sun in order to produce electricity. A common unit when referring to large amounts of energy is millions of tons of oil equivalent (Mtoe). The world’s consumption of energy in 2010 was 12,852 Mtoe (Enerdata, 2012) which is 538 EJ1 The sun has a flux of 174 PW2 on the Earth’s atmosphere of which 30% is reflected leaving 121.8 PW to be absorbed by the Earth or 3,840,000 EJ annually. The amount of thermal energy the sun produces is more than 7,000 times the world’s energy consumption in 2010. Simply put, the sun produces a large amount of energy that can be used for the power needs of the world. 2.1 Concentrated and Collection Technologies One of the challenges with solar thermal technologies is gathering the solar energy and putting it to use by the most efficient means. The technologies that have been developed in order to do this are power towers, the Stirling dish and parabolic troughs. Each of these technologies will be discussed in further detail in the following section. 2.1.1 Power Tower The power tower system concentrates the sun’s energy to a centralized location on the top of a tower. The energy is reflected by flat mirrors called heliostats. A two-axis 1 1EJis1Exajoule.1EJ=1018 J 2 1PWis1Petawatt.1PW=1015 WPDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
PDF Search Title:
WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAHOriginal File Name Searched:
669.pdfDIY PDF Search: Google It | Yahoo | Bing
