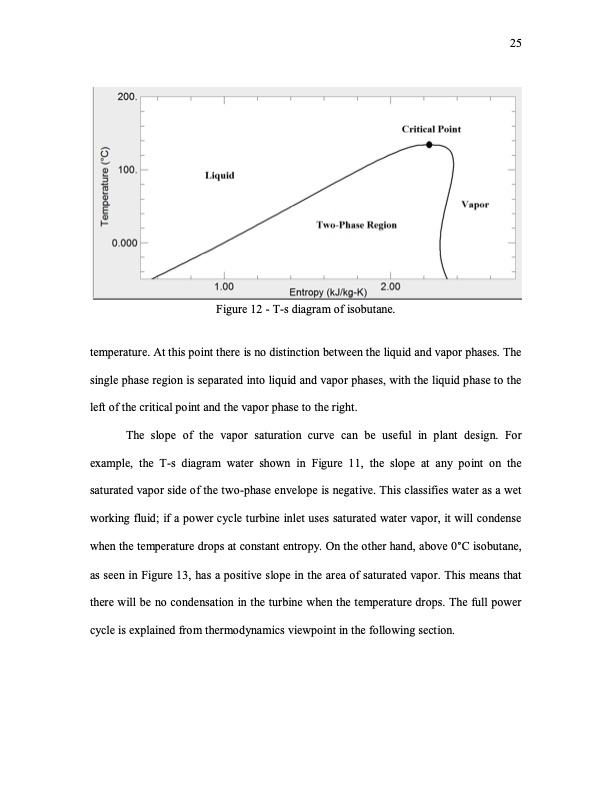

25 Figure 12 - T-s diagram of isobutane. temperature. At this point there is no distinction between the liquid and vapor phases. The single phase region is separated into liquid and vapor phases, with the liquid phase to the left of the critical point and the vapor phase to the right. The slope of the vapor saturation curve can be useful in plant design. For example, the T-s diagram water shown in Figure 11, the slope at any point on the saturated vapor side of the two-phase envelope is negative. This classifies water as a wet working fluid; if a power cycle turbine inlet uses saturated water vapor, it will condense when the temperature drops at constant entropy. On the other hand, above 0°C isobutane, as seen in Figure 13, has a positive slope in the area of saturated vapor. This means that there will be no condensation in the turbine when the temperature drops. The full power cycle is explained from thermodynamics viewpoint in the following section.PDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
