Text from PDF Page: 049

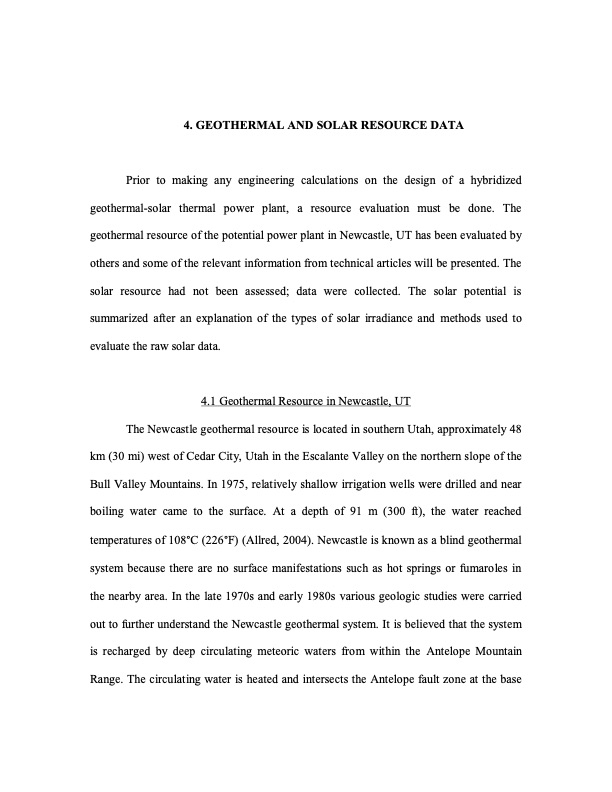

4. GEOTHERMAL AND SOLAR RESOURCE DATA Prior to making any engineering calculations on the design of a hybridized geothermal-solar thermal power plant, a resource evaluation must be done. The geothermal resource of the potential power plant in Newcastle, UT has been evaluated by others and some of the relevant information from technical articles will be presented. The solar resource had not been assessed; data were collected. The solar potential is summarized after an explanation of the types of solar irradiance and methods used to evaluate the raw solar data. 4.1 Geothermal Resource in Newcastle, UT The Newcastle geothermal resource is located in southern Utah, approximately 48 km (30 mi) west of Cedar City, Utah in the Escalante Valley on the northern slope of the Bull Valley Mountains. In 1975, relatively shallow irrigation wells were drilled and near boiling water came to the surface. At a depth of 91 m (300 ft), the water reached temperatures of 108°C (226°F) (Allred, 2004). Newcastle is known as a blind geothermal system because there are no surface manifestations such as hot springs or fumaroles in the nearby area. In the late 1970s and early 1980s various geologic studies were carried out to further understand the Newcastle geothermal system. It is believed that the system is recharged by deep circulating meteoric waters from within the Antelope Mountain Range. The circulating water is heated and intersects the Antelope fault zone at the basePDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
PDF Search Title:
WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAHOriginal File Name Searched:
