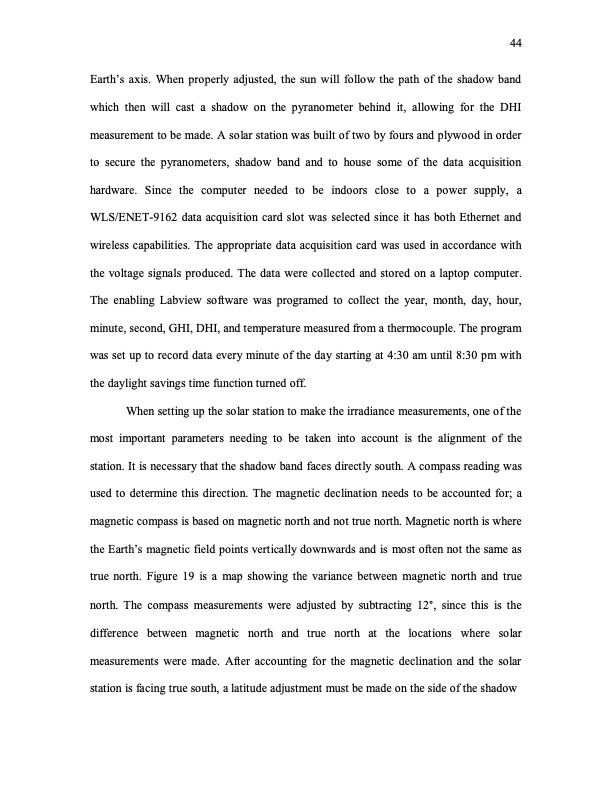

Earth’s axis. When properly adjusted, the sun will follow the path of the shadow band which then will cast a shadow on the pyranometer behind it, allowing for the DHI measurement to be made. A solar station was built of two by fours and plywood in order to secure the pyranometers, shadow band and to house some of the data acquisition hardware. Since the computer needed to be indoors close to a power supply, a WLS/ENET-9162 data acquisition card slot was selected since it has both Ethernet and wireless capabilities. The appropriate data acquisition card was used in accordance with the voltage signals produced. The data were collected and stored on a laptop computer. The enabling Labview software was programed to collect the year, month, day, hour, minute, second, GHI, DHI, and temperature measured from a thermocouple. The program was set up to record data every minute of the day starting at 4:30 am until 8:30 pm with the daylight savings time function turned off. When setting up the solar station to make the irradiance measurements, one of the most important parameters needing to be taken into account is the alignment of the station. It is necessary that the shadow band faces directly south. A compass reading was used to determine this direction. The magnetic declination needs to be accounted for; a magnetic compass is based on magnetic north and not true north. Magnetic north is where the Earth’s magnetic field points vertically downwards and is most often not the same as true north. Figure 19 is a map showing the variance between magnetic north and true north. The compass measurements were adjusted by subtracting 12°, since this is the difference between magnetic north and true north at the locations where solar measurements were made. After accounting for the magnetic declination and the solar station is facing true south, a latitude adjustment must be made on the side of the shadow 44PDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
