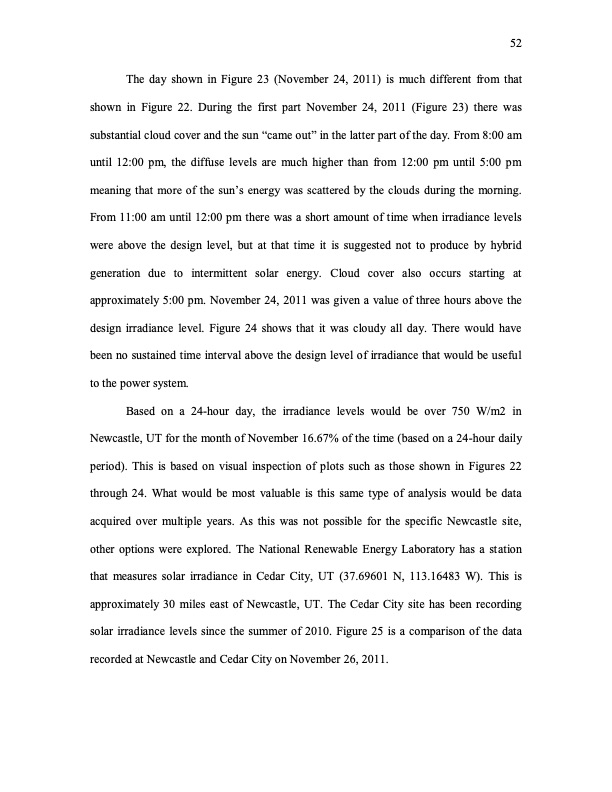

The day shown in Figure 23 (November 24, 2011) is much different from that shown in Figure 22. During the first part November 24, 2011 (Figure 23) there was substantial cloud cover and the sun “came out” in the latter part of the day. From 8:00 am until 12:00 pm, the diffuse levels are much higher than from 12:00 pm until 5:00 pm meaning that more of the sun’s energy was scattered by the clouds during the morning. From 11:00 am until 12:00 pm there was a short amount of time when irradiance levels were above the design level, but at that time it is suggested not to produce by hybrid generation due to intermittent solar energy. Cloud cover also occurs starting at approximately 5:00 pm. November 24, 2011 was given a value of three hours above the design irradiance level. Figure 24 shows that it was cloudy all day. There would have been no sustained time interval above the design level of irradiance that would be useful to the power system. Based on a 24-hour day, the irradiance levels would be over 750 W/m2 in Newcastle, UT for the month of November 16.67% of the time (based on a 24-hour daily period). This is based on visual inspection of plots such as those shown in Figures 22 through 24. What would be most valuable is this same type of analysis would be data acquired over multiple years. As this was not possible for the specific Newcastle site, other options were explored. The National Renewable Energy Laboratory has a station that measures solar irradiance in Cedar City, UT (37.69601 N, 113.16483 W). This is approximately 30 miles east of Newcastle, UT. The Cedar City site has been recording solar irradiance levels since the summer of 2010. Figure 25 is a comparison of the data recorded at Newcastle and Cedar City on November 26, 2011. 52PDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
