Text from PDF Page: 066

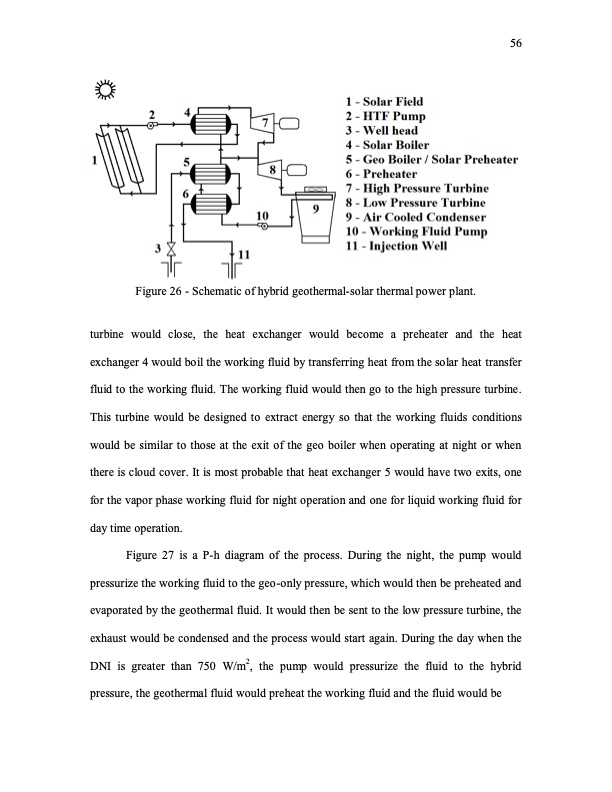

56 Figure 26 - Schematic of hybrid geothermal-solar thermal power plant. turbine would close, the heat exchanger would become a preheater and the heat exchanger 4 would boil the working fluid by transferring heat from the solar heat transfer fluid to the working fluid. The working fluid would then go to the high pressure turbine. This turbine would be designed to extract energy so that the working fluids conditions would be similar to those at the exit of the geo boiler when operating at night or when there is cloud cover. It is most probable that heat exchanger 5 would have two exits, one for the vapor phase working fluid for night operation and one for liquid working fluid for day time operation. Figure 27 is a P-h diagram of the process. During the night, the pump would pressurize the working fluid to the geo-only pressure, which would then be preheated and evaporated by the geothermal fluid. It would then be sent to the low pressure turbine, the exhaust would be condensed and the process would start again. During the day when the DNI is greater than 750 W/m2, the pump would pressurize the fluid to the hybrid pressure, the geothermal fluid would preheat the working fluid and the fluid would be
