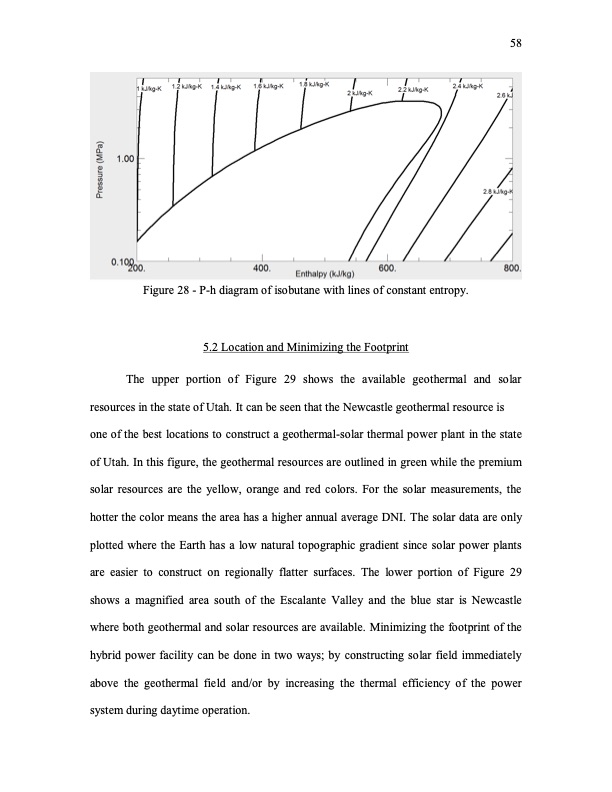

Figure 28 - P-h diagram of isobutane with lines of constant entropy. 5.2 Location and Minimizing the Footprint The upper portion of Figure 29 shows the available geothermal and solar resources in the state of Utah. It can be seen that the Newcastle geothermal resource is one of the best locations to construct a geothermal-solar thermal power plant in the state of Utah. In this figure, the geothermal resources are outlined in green while the premium solar resources are the yellow, orange and red colors. For the solar measurements, the hotter the color means the area has a higher annual average DNI. The solar data are only plotted where the Earth has a low natural topographic gradient since solar power plants are easier to construct on regionally flatter surfaces. The lower portion of Figure 29 shows a magnified area south of the Escalante Valley and the blue star is Newcastle where both geothermal and solar resources are available. Minimizing the footprint of the hybrid power facility can be done in two ways; by constructing solar field immediately above the geothermal field and/or by increasing the thermal efficiency of the power system during daytime operation. 58PDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
