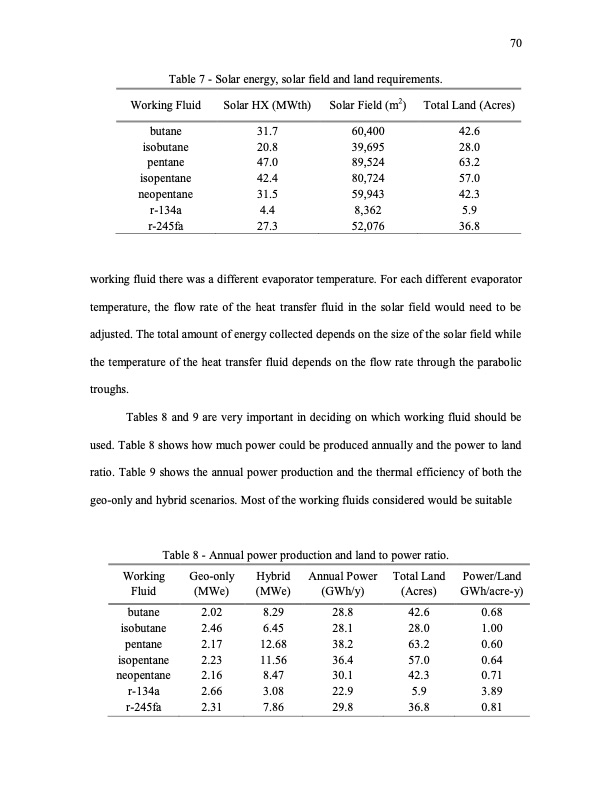

Text from PDF Page: 080
Table 7 - Solar energy, solar field and land requirements. 70 Working Fluid butane isobutane pentane isopentane neopentane r-134a r-245fa Solar HX (MWth) 31.7 20.8 47.0 42.4 31.5 4.4 27.3 Solar Field (m2) 60,400 39,695 89,524 80,724 59,943 8,362 52,076 Total Land (Acres) 42.6 28.0 63.2 57.0 42.3 5.9 36.8 working fluid there was a different evaporator temperature. For each different evaporator temperature, the flow rate of the heat transfer fluid in the solar field would need to be adjusted. The total amount of energy collected depends on the size of the solar field while the temperature of the heat transfer fluid depends on the flow rate through the parabolic troughs. Tables 8 and 9 are very important in deciding on which working fluid should be used. Table 8 shows how much power could be produced annually and the power to land ratio. Table 9 shows the annual power production and the thermal efficiency of both the geo-only and hybrid scenarios. Most of the working fluids considered would be suitable Table 8 - Annual power production and land to power ratio. Working Fluid butane isobutane pentane isopentane neopentane r-134a r-245fa Geo-only Hybrid (MWe) (MWe) 2.02 8.29 2.46 6.45 2.17 12.68 2.23 11.56 2.16 8.47 2.66 3.08 2.31 7.86 Annual Power (GWh/y) 28.8 28.1 38.2 36.4 30.1 22.9 29.8 Total Land (Acres) Power/Land GWh/acre-y) 42.6 0.68 28.0 1.00 63.2 0.60 57.0 0.64 42.3 0.71 5.9 3.89 36.8 0.81PDF Image | WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAH
PDF Search Title:
WORKING FLUID SELECTION FOR AN INCREASED EFFICIENCY HYBRIDIZED GEOTHERMAL-SOLAR THERMAL POWER PLANT IN NEWCASTLE, UTAHOriginal File Name Searched:
