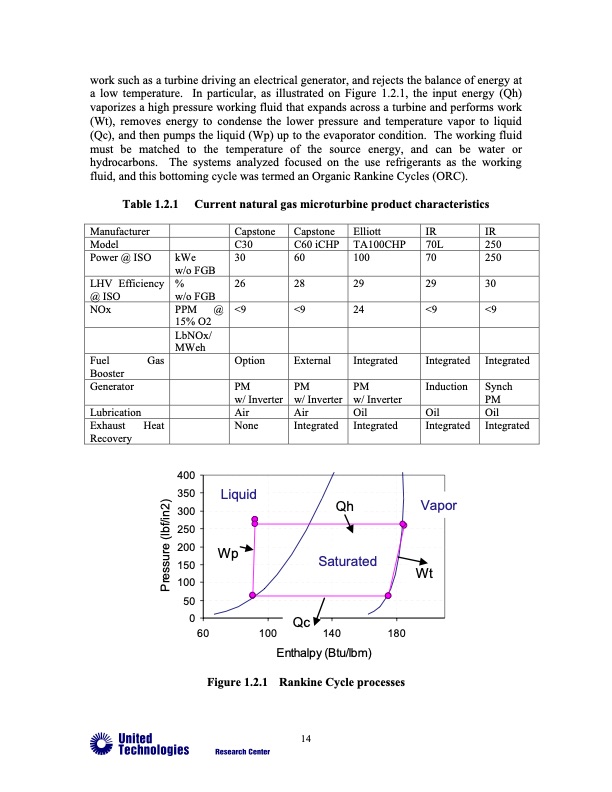

work such as a turbine driving an electrical generator, and rejects the balance of energy at a low temperature. In particular, as illustrated on Figure 1.2.1, the input energy (Qh) vaporizes a high pressure working fluid that expands across a turbine and performs work (Wt), removes energy to condense the lower pressure and temperature vapor to liquid (Qc), and then pumps the liquid (Wp) up to the evaporator condition. The working fluid must be matched to the temperature of the source energy, and can be water or hydrocarbons. The systems analyzed focused on the use refrigerants as the working fluid, and this bottoming cycle was termed an Organic Rankine Cycles (ORC). Table 1.2.1 Current natural gas microturbine product characteristics Manufacturer Model Power @ ISO LHV Efficiency @ ISO NOx Fuel Gas Booster Generator Lubrication Exhaust Heat Recovery kWe w/o FGB % w/o FGB Capstone C30 30 26 <9 Option PM w/ Inverter Air None Capstone C60 iCHP 60 28 <9 External PM w/ Inverter Air Integrated Elliott TA100CHP 100 29 24 Integrated IR IR 70L 250 70 250 29 30 <9 <9 Integrated Integrated PPM 15% O2 LbNOx/ MWeh @ Oil Integrated Oil Oil Integrated Integrated Induction Synch PM w/ Inverter PM 400 350 300 250 200 150 100 50 0 60 100 Qc 140 180 Liquid Wp Enthalpy (Btu/lbm) Qh Saturated Vapor Wt Figure 1.2.1 Rankine Cycle processes 14 Pressure (lbf/in2)PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
