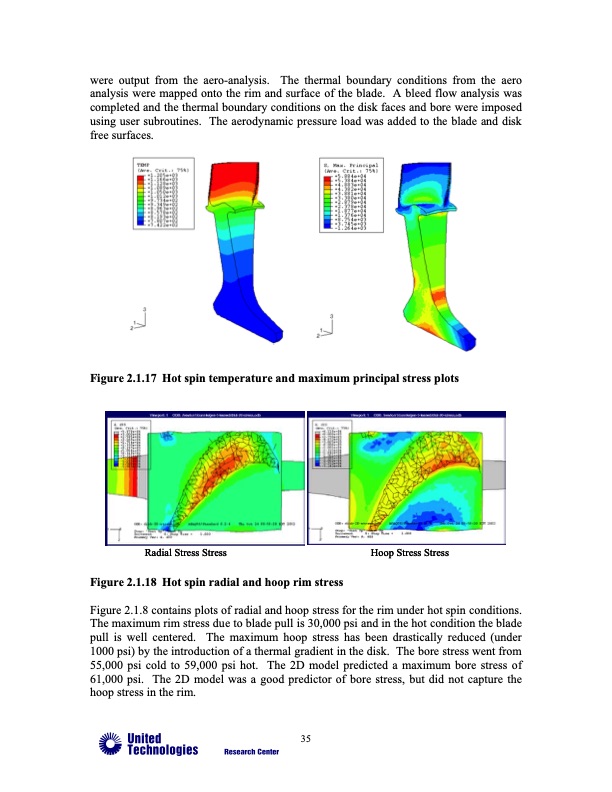

were output from the aero-analysis. The thermal boundary conditions from the aero analysis were mapped onto the rim and surface of the blade. A bleed flow analysis was completed and the thermal boundary conditions on the disk faces and bore were imposed using user subroutines. The aerodynamic pressure load was added to the blade and disk free surfaces. Figure 2.1.17 Hot spin temperature and maximum principal stress plots Radial Stress Stress Hoop Stress Stress Figure 2.1.18 Hot spin radial and hoop rim stress Figure 2.1.8 contains plots of radial and hoop stress for the rim under hot spin conditions. The maximum rim stress due to blade pull is 30,000 psi and in the hot condition the blade pull is well centered. The maximum hoop stress has been drastically reduced (under 1000 psi) by the introduction of a thermal gradient in the disk. The bore stress went from 55,000 psi cold to 59,000 psi hot. The 2D model predicted a maximum bore stress of 61,000 psi. The 2D model was a good predictor of bore stress, but did not capture the hoop stress in the rim. 35PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
