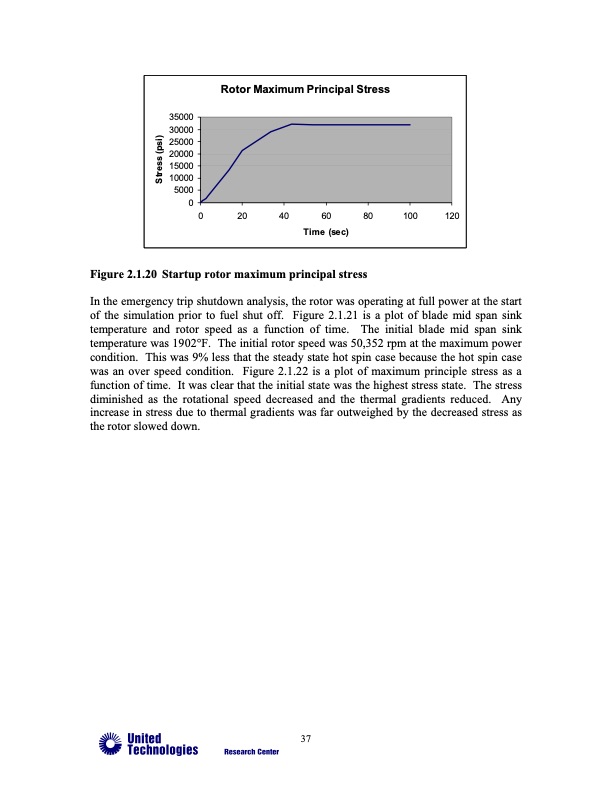

35000 30000 25000 20000 15000 10000 5000 0 Rotor Maximum Principal Stress 0 20 40 60 80 100 120 Time (sec) Figure 2.1.20 Startup rotor maximum principal stress In the emergency trip shutdown analysis, the rotor was operating at full power at the start of the simulation prior to fuel shut off. Figure 2.1.21 is a plot of blade mid span sink temperature and rotor speed as a function of time. The initial blade mid span sink temperature was 1902°F. The initial rotor speed was 50,352 rpm at the maximum power condition. This was 9% less that the steady state hot spin case because the hot spin case was an over speed condition. Figure 2.1.22 is a plot of maximum principle stress as a function of time. It was clear that the initial state was the highest stress state. The stress diminished as the rotational speed decreased and the thermal gradients reduced. Any increase in stress due to thermal gradients was far outweighed by the decreased stress as the rotor slowed down. 37 Stress (psi)PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
