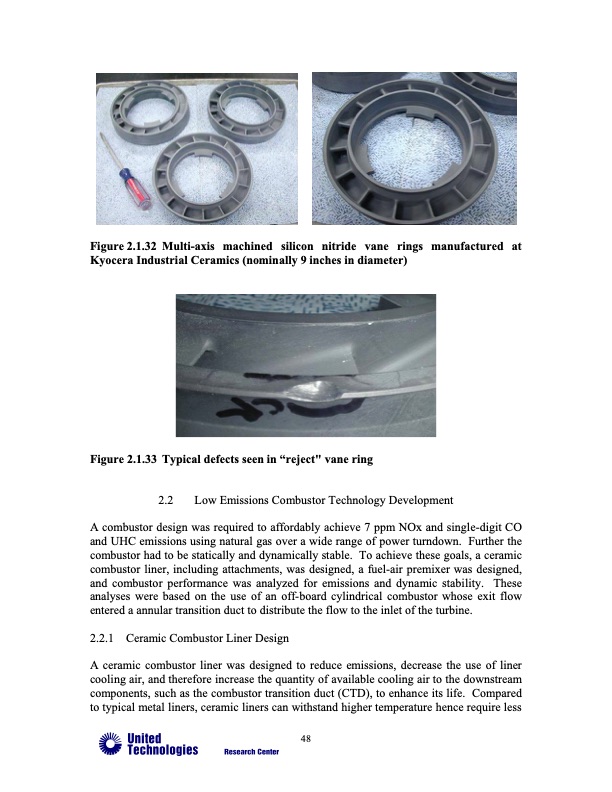

Figure 2.1.32 Multi-axis machined silicon nitride vane rings manufactured at Kyocera Industrial Ceramics (nominally 9 inches in diameter) Figure 2.1.33 Typical defects seen in “reject" vane ring 2.2 Low Emissions Combustor Technology Development A combustor design was required to affordably achieve 7 ppm NOx and single-digit CO and UHC emissions using natural gas over a wide range of power turndown. Further the combustor had to be statically and dynamically stable. To achieve these goals, a ceramic combustor liner, including attachments, was designed, a fuel-air premixer was designed, and combustor performance was analyzed for emissions and dynamic stability. These analyses were based on the use of an off-board cylindrical combustor whose exit flow entered a annular transition duct to distribute the flow to the inlet of the turbine. 2.2.1 Ceramic Combustor Liner Design A ceramic combustor liner was designed to reduce emissions, decrease the use of liner cooling air, and therefore increase the quantity of available cooling air to the downstream components, such as the combustor transition duct (CTD), to enhance its life. Compared to typical metal liners, ceramic liners can withstand higher temperature hence require less 48PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
