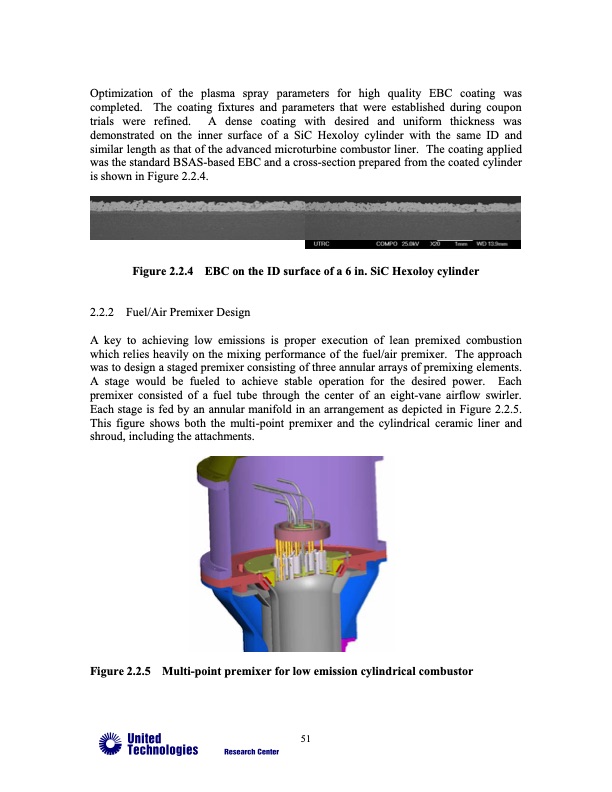

Optimization of the plasma spray parameters for high quality EBC coating was completed. The coating fixtures and parameters that were established during coupon trials were refined. A dense coating with desired and uniform thickness was demonstrated on the inner surface of a SiC Hexoloy cylinder with the same ID and similar length as that of the advanced microturbine combustor liner. The coating applied was the standard BSAS-based EBC and a cross-section prepared from the coated cylinder is shown in Figure 2.2.4. Figure 2.2.4 EBC on the ID surface of a 6 in. SiC Hexoloy cylinder 2.2.2 Fuel/Air Premixer Design A key to achieving low emissions is proper execution of lean premixed combustion which relies heavily on the mixing performance of the fuel/air premixer. The approach was to design a staged premixer consisting of three annular arrays of premixing elements. A stage would be fueled to achieve stable operation for the desired power. Each premixer consisted of a fuel tube through the center of an eight-vane airflow swirler. Each stage is fed by an annular manifold in an arrangement as depicted in Figure 2.2.5. This figure shows both the multi-point premixer and the cylindrical ceramic liner and shroud, including the attachments. Figure 2.2.5 Multi-point premixer for low emission cylindrical combustor 51PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
