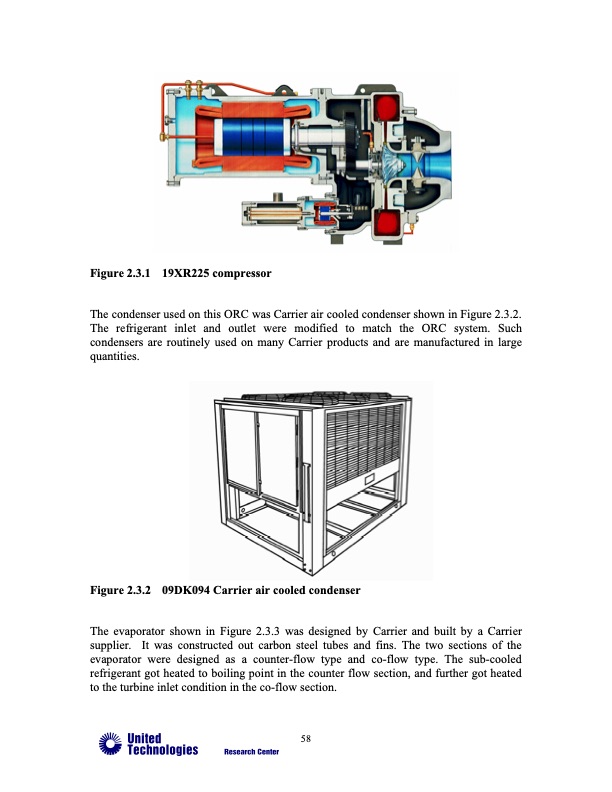

Figure 2.3.1 19XR225 compressor The condenser used on this ORC was Carrier air cooled condenser shown in Figure 2.3.2. The refrigerant inlet and outlet were modified to match the ORC system. Such condensers are routinely used on many Carrier products and are manufactured in large quantities. Figure 2.3.2 09DK094 Carrier air cooled condenser The evaporator shown in Figure 2.3.3 was designed by Carrier and built by a Carrier supplier. It was constructed out carbon steel tubes and fins. The two sections of the evaporator were designed as a counter-flow type and co-flow type. The sub-cooled refrigerant got heated to boiling point in the counter flow section, and further got heated to the turbine inlet condition in the co-flow section. 58PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
