Text from PDF Page: 060

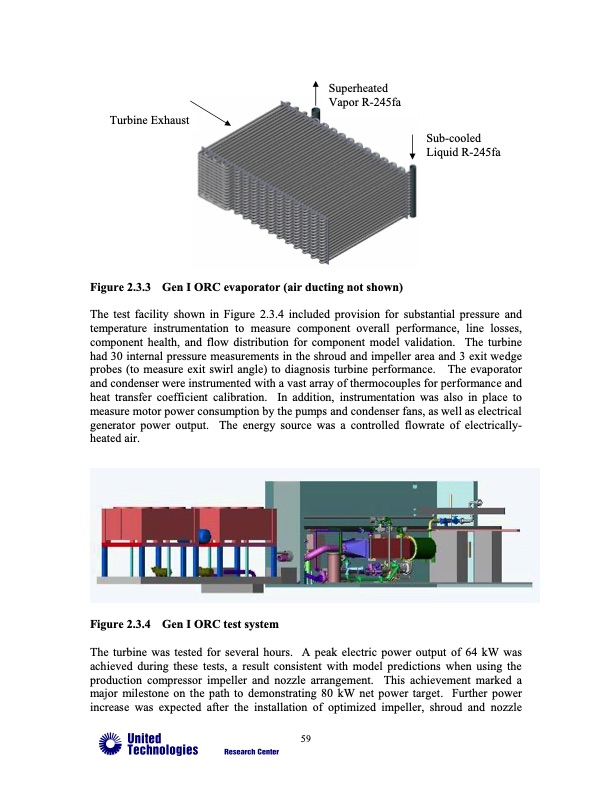

Turbine Exhaust Figure 2.3.3 Gen I ORC evaporator (air ducting not shown) The test facility shown in Figure 2.3.4 included provision for substantial pressure and temperature instrumentation to measure component overall performance, line losses, component health, and flow distribution for component model validation. The turbine had 30 internal pressure measurements in the shroud and impeller area and 3 exit wedge probes (to measure exit swirl angle) to diagnosis turbine performance. The evaporator and condenser were instrumented with a vast array of thermocouples for performance and heat transfer coefficient calibration. In addition, instrumentation was also in place to measure motor power consumption by the pumps and condenser fans, as well as electrical generator power output. The energy source was a controlled flowrate of electrically- heated air. Figure 2.3.4 Gen I ORC test system The turbine was tested for several hours. A peak electric power output of 64 kW was achieved during these tests, a result consistent with model predictions when using the production compressor impeller and nozzle arrangement. This achievement marked a major milestone on the path to demonstrating 80 kW net power target. Further power increase was expected after the installation of optimized impeller, shroud and nozzle 59 Superheated Vapor R-245fa Sub-cooled Liquid R-245faPDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
