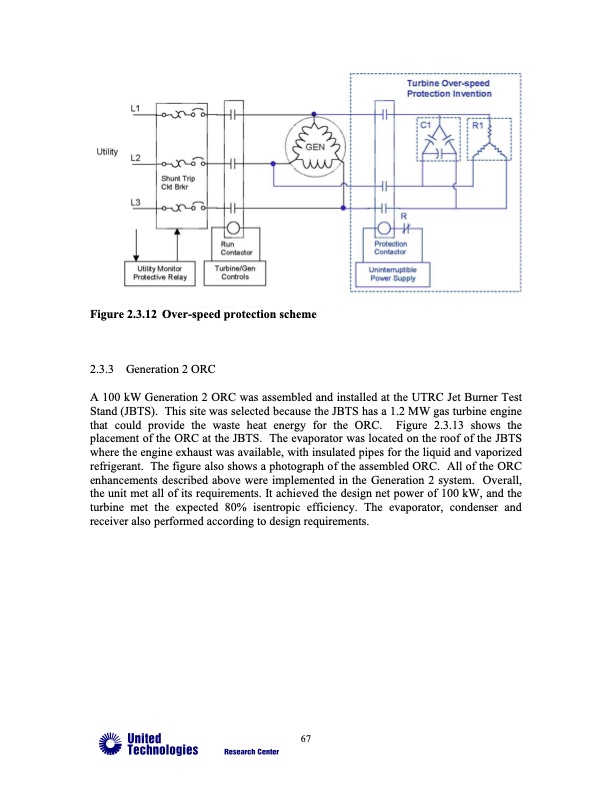

Figure 2.3.12 Over-speed protection scheme 2.3.3 Generation 2 ORC A 100 kW Generation 2 ORC was assembled and installed at the UTRC Jet Burner Test Stand (JBTS). This site was selected because the JBTS has a 1.2 MW gas turbine engine that could provide the waste heat energy for the ORC. Figure 2.3.13 shows the placement of the ORC at the JBTS. The evaporator was located on the roof of the JBTS where the engine exhaust was available, with insulated pipes for the liquid and vaporized refrigerant. The figure also shows a photograph of the assembled ORC. All of the ORC enhancements described above were implemented in the Generation 2 system. Overall, the unit met all of its requirements. It achieved the design net power of 100 kW, and the turbine met the expected 80% isentropic efficiency. The evaporator, condenser and receiver also performed according to design requirements. 67PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
