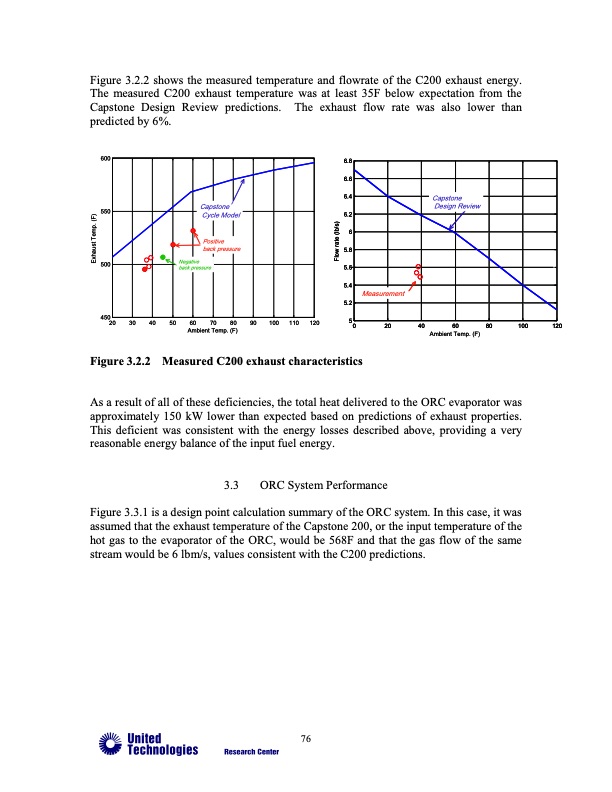

Figure 3.2.2 shows the measured temperature and flowrate of the C200 exhaust energy. The measured C200 exhaust temperature was at least 35F below expectation from the Capstone Design Review predictions. The exhaust flow rate was also lower than predicted by 6%. 600 550 500 450 20 30 40 50 60 70 80 90 100 110 120 6.8 6.6 6.4 6.2 6 5.8 5.6 5.4 5.2 5 0 20 40 60 80 Ambient Temp. (F) 100 120 Capstone Cyc le Model Negative back pressure Positive back pressure Capstone Design Review Measurement Figure 3.2.2 Measured C200 exhaust characteristics Ambient Temp. (F) As a result of all of these deficiencies, the total heat delivered to the ORC evaporator was approximately 150 kW lower than expected based on predictions of exhaust properties. This deficient was consistent with the energy losses described above, providing a very reasonable energy balance of the input fuel energy. 3.3 ORC System Performance Figure 3.3.1 is a design point calculation summary of the ORC system. In this case, it was assumed that the exhaust temperature of the Capstone 200, or the input temperature of the hot gas to the evaporator of the ORC, would be 568F and that the gas flow of the same stream would be 6 lbm/s, values consistent with the C200 predictions. 76 Exhaust Temp. (F) Flow rate (lb/s)PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
