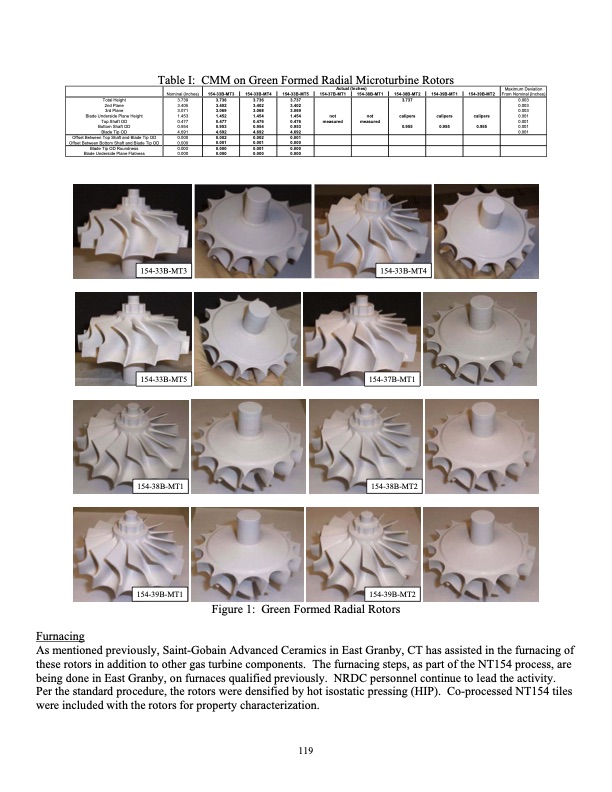

Table I: CMM on Green Formed Radial Microturbine Rotors Actual (Inches) Maximum Deviation Nominal (Inches) 154-33B-MT3 154-33B-MT4 154-33B-MT5 154-37B-MT1 154-38B-MT1 154-38B-MT2 154-39B-MT1 154-39B-MT2 From Nominal (Inches) Total Height 2nd Plane 3rd Plane Blade Underside Plane Height Top Shaft OD Bottom Shaft OD Blade Tip OD 3.739 3.405 3.071 1.453 0.477 0.954 4.691 3.736 3.402 3.069 1.452 0.477 0.953 4.692 3.736 3.402 3.068 1.454 0.476 0.954 4.692 3.737 3.402 3.069 1.454 0.476 0.953 4.692 not measured not measured 3.737 calipers 0.955 calipers 0.955 calipers 0.955 0.003 0.003 0.003 0.001 0.001 0.001 0.001 Offset Between Top Shaft and Blade Tip OD Offset Between Bottom Shaft and Blade Tip OD 0.000 0.000 0.002 0.001 0.002 0.001 0.001 0.000 Blade Tip OD Roundness Blade Underside Plane Flatness 0.000 0.000 0.000 0.000 0.001 0.000 0.000 0.000 154-33B-MT3 154-33B-MT5 154-38B-MT1 154-39B-MT1 154-33B-MT4 154-37B-MT1 154-38B-MT2 154-39B-MT2 Figure 1: Green Formed Radial Rotors Furnacing As mentioned previously, Saint-Gobain Advanced Ceramics in East Granby, CT has assisted in the furnacing of these rotors in addition to other gas turbine components. The furnacing steps, as part of the NT154 process, are being done in East Granby, on furnaces qualified previously. NRDC personnel continue to lead the activity. Per the standard procedure, the rotors were densified by hot isostatic pressing (HIP). Co-processed NT154 tiles were included with the rotors for property characterization. 119PDF Image | ADVANCED MICROTURBINE SYSTEMS Final Report for Tasks 1 Through 4 and Task 6
