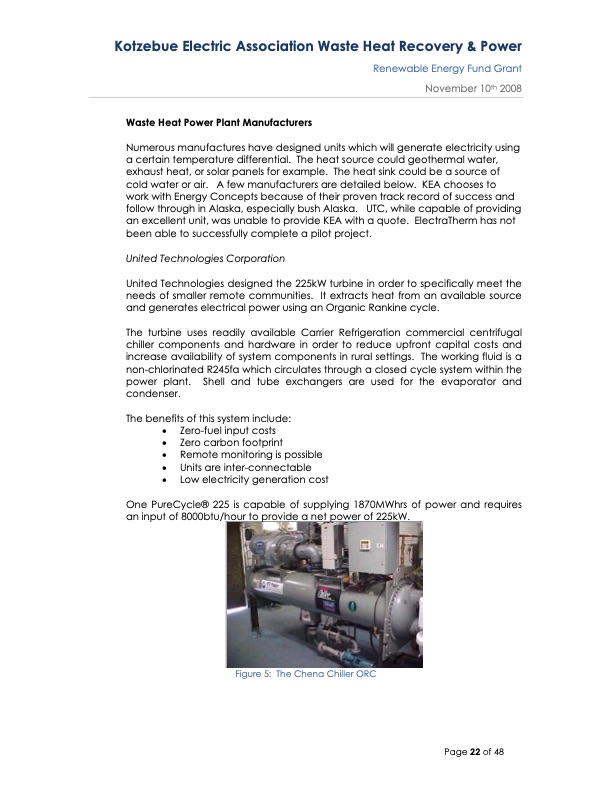

Kotzebue Electric Association Waste Heat Recovery & Power Renewable Energy Fund Grant November 10th 2008 Waste Heat Power Plant Manufacturers Numerous manufactures have designed units which will generate electricity using a certain temperature differential. The heat source could geothermal water, exhaust heat, or solar panels for example. The heat sink could be a source of cold water or air. A few manufacturers are detailed below. KEA chooses to work with Energy Concepts because of their proven track record of success and follow through in Alaska, especially bush Alaska. UTC, while capable of providing an excellent unit, was unable to provide KEA with a quote. ElectraTherm has not been able to successfully complete a pilot project. United Technologies Corporation United Technologies designed the 225kW turbine in order to specifically meet the needs of smaller remote communities. It extracts heat from an available source and generates electrical power using an Organic Rankine cycle. The turbine uses readily available Carrier Refrigeration commercial centrifugal chiller components and hardware in order to reduce upfront capital costs and increase availability of system components in rural settings. The working fluid is a non-chlorinated R245fa which circulates through a closed cycle system within the power plant. Shell and tube exchangers are used for the evaporator and condenser. The benefits of this system include: Zero-fuel input costs Zero carbon footprint Remote monitoring is possible Units are inter-connectable Low electricity generation cost One PureCycle® 225 is capable of supplying 1870MWhrs of power and requires an input of 8000btu/hour to provide a net power of 225kW. Figure 5: The Chena Chiller ORC Page 22 of 48PDF Image | Alaska Energy Grant Renewable Energy
