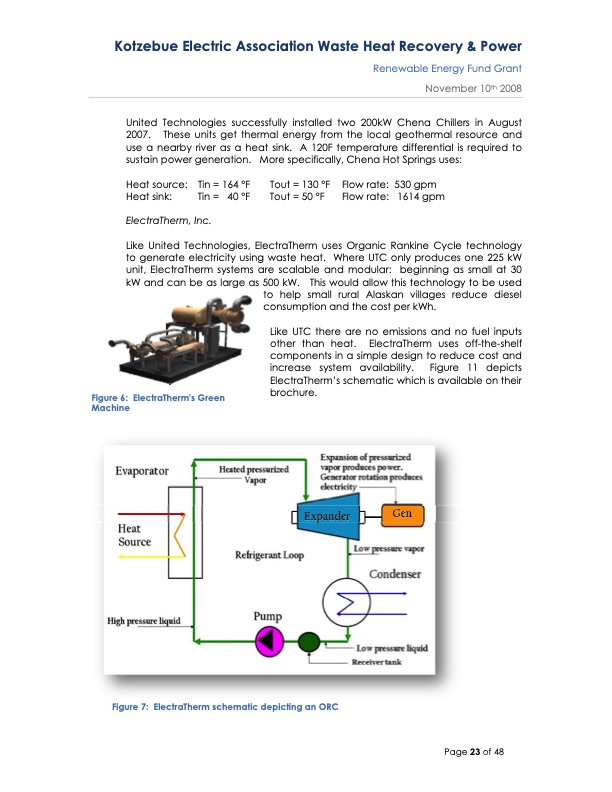

Kotzebue Electric Association Waste Heat Recovery & Power Renewable Energy Fund Grant November 10th 2008 United Technologies successfully installed two 200kW Chena Chillers in August 2007. These units get thermal energy from the local geothermal resource and use a nearby river as a heat sink. A 120F temperature differential is required to sustain power generation. Heat source: Tin = 164 °F Heat sink: Tin = 40 °F ElectraTherm, Inc. More specifically, Chena Hot Springs uses: Tout = 130 °F Flow rate: 530 gpm Tout = 50 °F Flow rate: 1614 gpm Like United Technologies, ElectraTherm uses Organic Rankine Cycle technology to generate electricity using waste heat. Where UTC only produces one 225 kW unit, ElectraTherm systems are scalable and modular: beginning as small at 30 kW and can be as large as 500 kW. This would allow this technology to be used to help small rural Alaskan villages reduce diesel consumption and the cost per kWh. Like UTC there are no emissions and no fuel inputs other than heat. ElectraTherm uses off-the-shelf components in a simple design to reduce cost and increase system availability. Figure 11 depicts ElectraTherm’s schematic which is available on their brochure. Figure 6: ElectraTherm's Green Machine Figure 7: ElectraTherm schematic depicting an ORC Page 23 of 48PDF Image | Alaska Energy Grant Renewable Energy
