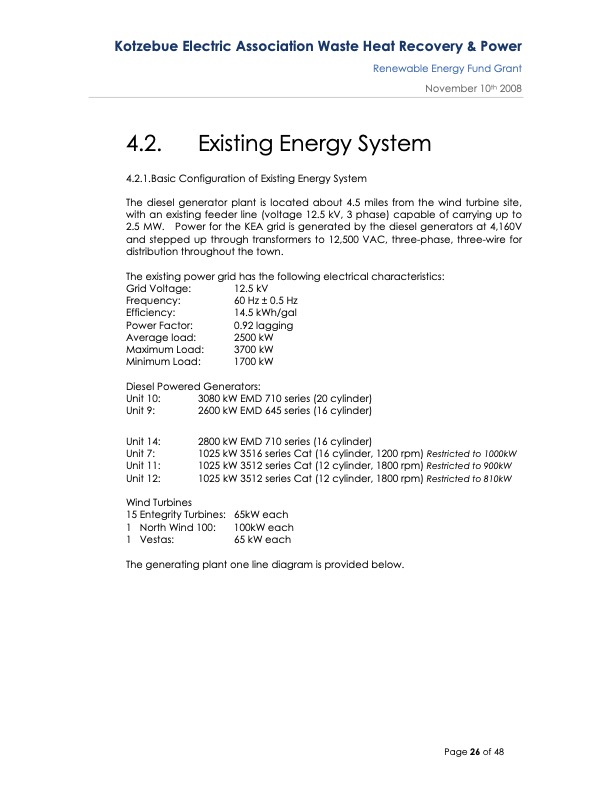

Kotzebue Electric Association Waste Heat Recovery & Power Renewable Energy Fund Grant November 10th 2008 4.2. Existing Energy System 4.2.1.Basic Configuration of Existing Energy System The diesel generator plant is located about 4.5 miles from the wind turbine site, with an existing feeder line (voltage 12.5 kV, 3 phase) capable of carrying up to 2.5 MW. Power for the KEA grid is generated by the diesel generators at 4,160V and stepped up through transformers to 12,500 VAC, three-phase, three-wire for distribution throughout the town. The existing power grid has the following electrical characteristics: Grid Voltage: Frequency: Efficiency: Power Factor: Average load: Maximum Load: Minimum Load: 12.5 kV 60 Hz ± 0.5 Hz 14.5 kWh/gal 0.92 lagging 2500 kW 3700 kW 1700 kW Diesel Powered Generators: Unit 10: Unit 9: Unit 14: Unit 7: Unit 11: Unit 12: 3080 kW EMD 710 series (20 cylinder) 2600 kW EMD 645 series (16 cylinder) 2800 kW EMD 710 series (16 cylinder) 1025 kW 3516 series Cat (16 cylinder, 1200 rpm) Restricted to 1000kW 1025 kW 3512 series Cat (12 cylinder, 1800 rpm) Restricted to 900kW 1025 kW 3512 series Cat (12 cylinder, 1800 rpm) Restricted to 810kW Wind Turbines 15 Entegrity Turbines: 1 North Wind 100: 1 Vestas: 65kW each 100kW each 65 kW each The generating plant one line diagram is provided below. Page 26 of 48PDF Image | Alaska Energy Grant Renewable Energy
