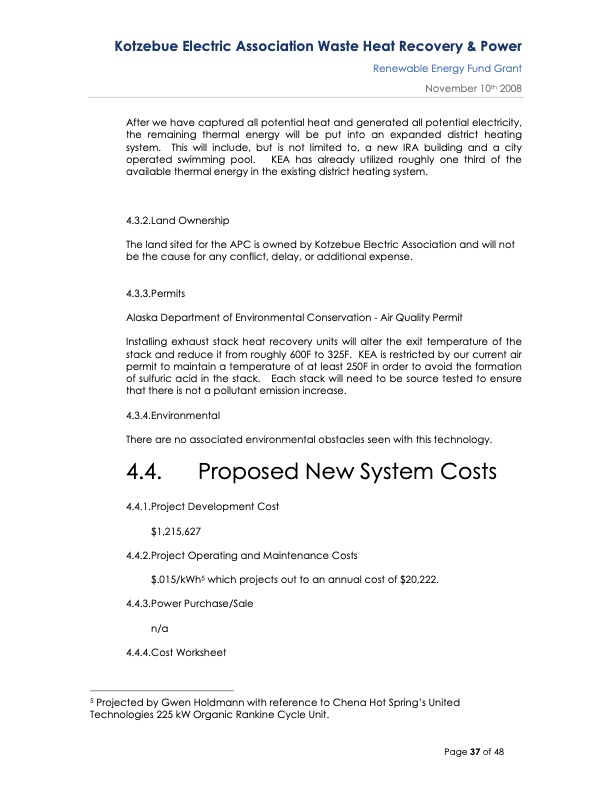

Kotzebue Electric Association Waste Heat Recovery & Power Renewable Energy Fund Grant November 10th 2008 After we have captured all potential heat and generated all potential electricity, the remaining thermal energy will be put into an expanded district heating system. This will include, but is not limited to, a new IRA building and a city operated swimming pool. KEA has already utilized roughly one third of the available thermal energy in the existing district heating system. 4.3.2.Land Ownership The land sited for the APC is owned by Kotzebue Electric Association and will not be the cause for any conflict, delay, or additional expense. 4.3.3.Permits Alaska Department of Environmental Conservation - Air Quality Permit Installing exhaust stack heat recovery units will alter the exit temperature of the stack and reduce it from roughly 600F to 325F. KEA is restricted by our current air permit to maintain a temperature of at least 250F in order to avoid the formation of sulfuric acid in the stack. Each stack will need to be source tested to ensure that there is not a pollutant emission increase. 4.3.4.Environmental There are no associated environmental obstacles seen with this technology. 4.4. Proposed New System Costs 4.4.1.Project Development Cost $1,215,627 4.4.2.Project Operating and Maintenance Costs $.015/kWh5 which projects out to an annual cost of $20,222. 4.4.3.Power Purchase/Sale n/a 4.4.4.Cost Worksheet 5 Projected by Gwen Holdmann with reference to Chena Hot Spring’s United Technologies 225 kW Organic Rankine Cycle Unit. Page 37 of 48PDF Image | Alaska Energy Grant Renewable Energy
