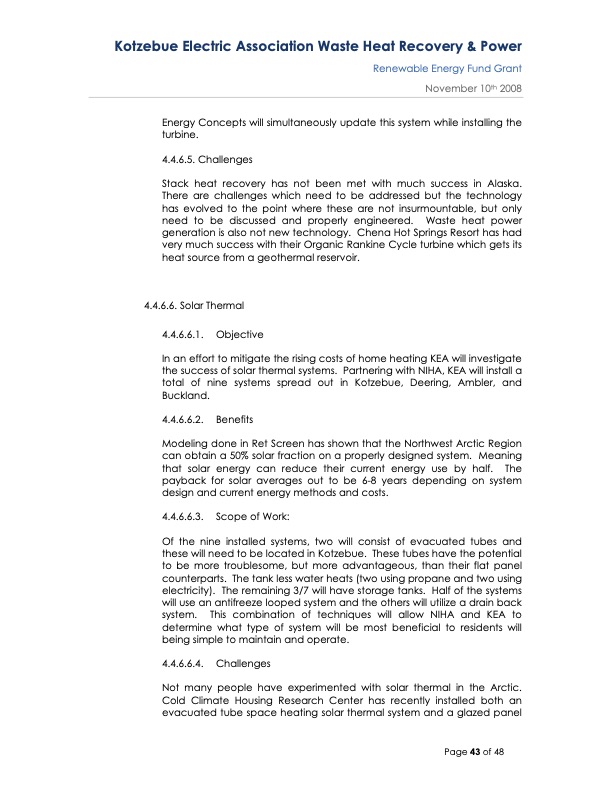

Kotzebue Electric Association Waste Heat Recovery & Power Renewable Energy Fund Grant November 10th 2008 Energy Concepts will simultaneously update this system while installing the turbine. 4.4.6.5. Challenges Stack heat recovery has not been met with much success in Alaska. There are challenges which need to be addressed but the technology has evolved to the point where these are not insurmountable, but only need to be discussed and properly engineered. Waste heat power generation is also not new technology. Chena Hot Springs Resort has had very much success with their Organic Rankine Cycle turbine which gets its heat source from a geothermal reservoir. 4.4.6.6. Solar Thermal 4.4.6.6.1. Objective In an effort to mitigate the rising costs of home heating KEA will investigate the success of solar thermal systems. Partnering with NIHA, KEA will install a total of nine systems spread out in Kotzebue, Deering, Ambler, and Buckland. 4.4.6.6.2. Benefits Modeling done in Ret Screen has shown that the Northwest Arctic Region can obtain a 50% solar fraction on a properly designed system. Meaning that solar energy can reduce their current energy use by half. The payback for solar averages out to be 6-8 years depending on system design and current energy methods and costs. 4.4.6.6.3. Scope of Work: Of the nine installed systems, two will consist of evacuated tubes and these will need to be located in Kotzebue. These tubes have the potential to be more troublesome, but more advantageous, than their flat panel counterparts. The tank less water heats (two using propane and two using electricity). The remaining 3/7 will have storage tanks. Half of the systems will use an antifreeze looped system and the others will utilize a drain back system. This combination of techniques will allow NIHA and KEA to determine what type of system will be most beneficial to residents will being simple to maintain and operate. 4.4.6.6.4. Challenges Not many people have experimented with solar thermal in the Arctic. Cold Climate Housing Research Center has recently installed both an evacuated tube space heating solar thermal system and a glazed panel Page 43 of 48PDF Image | Alaska Energy Grant Renewable Energy
