Text from PDF Page: 012

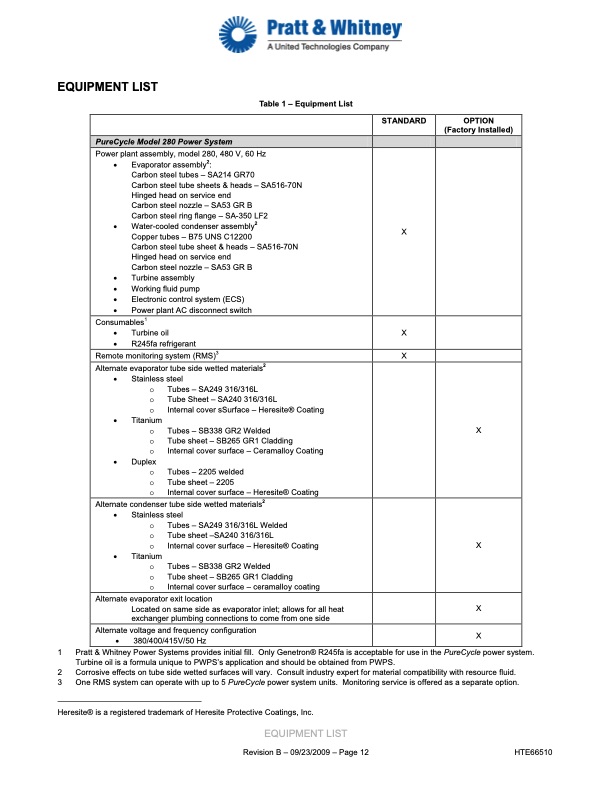

EQUIPMENT LIST Table 1 – Equipment List STANDARD OPTION (Factory Installed) PureCycle Model 280 Power System Power plant assembly, model 280, 480 V, 60 Hz Evaporator assembly2: Carbon steel tubes – SA214 GR70 Carbon steel tube sheets & heads – SA516-70N Hinged head on service end Carbon steel nozzle – SA53 GR B Carbon steel ring flange – SA-350 LF2 Water-cooled condenser assembly2 Copper tubes – B75 UNS C12200 Carbon steel tube sheet & heads – SA516-70N Hinged head on service end Carbon steel nozzle – SA53 GR B Turbine assembly Working fluid pump Electronic control system (ECS) Power plant AC disconnect switch X Consumables1 Turbine oil R245fa refrigerant Remote monitoring system (RMS)3 X X Alternate evaporator tube side wetted materials2 Stainless steel o Tubes – SA249 316/316L o Tube Sheet – SA240 316/316L o Internal cover sSurface – Heresite® Coating Titanium o Tubes – SB338 GR2 Welded o Tube sheet – SB265 GR1 Cladding o Internal cover surface – Ceramalloy Coating Duplex o Tubes – 2205 welded o Tube sheet – 2205 o Internal cover surface – Heresite® Coating X Alternate condenser tube side wetted materials2 Stainless steel o Tubes – SA249 316/316L Welded o Tube sheet –SA240 316/316L o Internal cover surface – Heresite® Coating Titanium o Tubes – SB338 GR2 Welded o Tube sheet – SB265 GR1 Cladding o Internal cover surface – ceramalloy coating X Alternate evaporator exit location Located on same side as evaporator inlet; allows for all heat exchanger plumbing connections to come from one side Alternate voltage and frequency configuration 380/400/415V/50 Hz X X 1 Pratt & Whitney Power Systems provides initial fill. Only Genetron® R245fa is acceptable for use in the PureCycle power system. Turbine oil is a formula unique to PWPS’s application and should be obtained from PWPS. 2 Corrosive effects on tube side wetted surfaces will vary. Consult industry expert for material compatibility with resource fluid. 3 One RMS system can operate with up to 5 PureCycle power system units. Monitoring service is offered as a separate option. Heresite® is a registered trademark of Heresite Protective Coatings, Inc. EQUIPMENT LIST Revision B – 09/23/2009 – Page 12 HTE66510PDF Image | Application Guide Hot Liquid to Electricity 280 kW Power
PDF Search Title:
Application Guide Hot Liquid to Electricity 280 kW PowerOriginal File Name Searched:
53179732_pwps_purecycle.pdfDIY PDF Search: Google It | Yahoo | Bing
