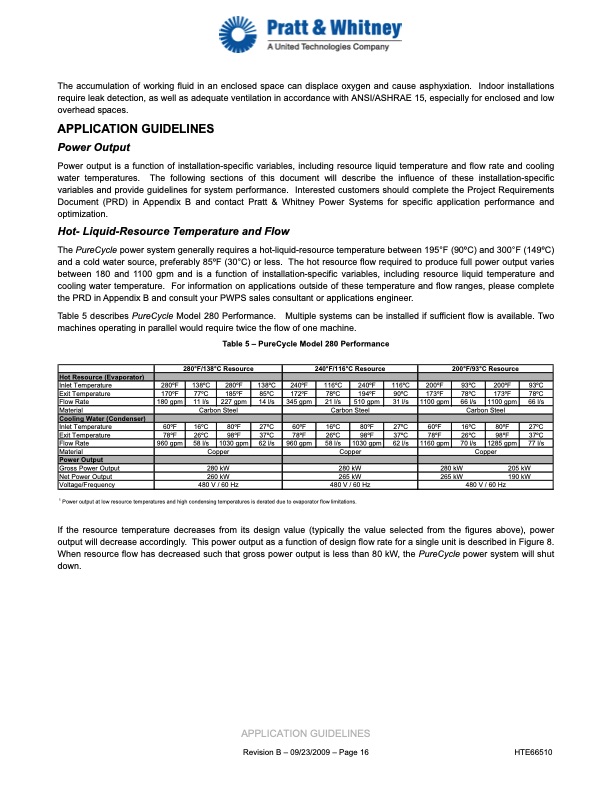

The accumulation of working fluid in an enclosed space can displace oxygen and cause asphyxiation. Indoor installations require leak detection, as well as adequate ventilation in accordance with ANSI/ASHRAE 15, especially for enclosed and low overhead spaces. APPLICATION GUIDELINES Power Output Power output is a function of installation-specific variables, including resource liquid temperature and flow rate and cooling water temperatures. The following sections of this document will describe the influence of these installation-specific variables and provide guidelines for system performance. Interested customers should complete the Project Requirements Document (PRD) in Appendix B and contact Pratt & Whitney Power Systems for specific application performance and optimization. Hot- Liquid-Resource Temperature and Flow The PureCycle power system generally requires a hot-liquid-resource temperature between 195°F (90oC) and 300°F (149oC) and a cold water source, preferably 85oF (30°C) or less. The hot resource flow required to produce full power output varies between 180 and 1100 gpm and is a function of installation-specific variables, including resource liquid temperature and cooling water temperature. For information on applications outside of these temperature and flow ranges, please complete the PRD in Appendix B and consult your PWPS sales consultant or applications engineer. Table 5 describes PureCycle Model 280 Performance. Multiple systems can be installed if sufficient flow is available. Two machines operating in parallel would require twice the flow of one machine. Table 5 – PureCycle Model 280 Performance Hot Resource (Evaporator) Inlet Temperature 280°F/138°C Resource 280oF 138oC 280oF 138oC 240°F/116°C Resource 240oF 116oC 240oF 116oC 200°F/93°C Resource 200oF 93oC 200oF 93oC Exit Temperature 170oF 77oC 185oF 85oC 172oF 78oC 194oF 90oC 173oF 78oC 173oF 78oC Flow Rate 180 gpm 11 l/s 227 gpm 14 l/s 345 gpm 21 l/s 510 gpm 31 l/s 1100 gpm 66 l/s 1100 gpm 66 l/s Material Carbon Steel Carbon Steel Carbon Steel Cooling Water (Condenser) Inlet Temperature 60oF 16oC 80oF 27oC 60oF 16oC 80oF 27oC 60oF 16oC 80oF 27oC Exit Temperature 78oF 26oC 98oF 37oC 78oF 26oC 98oF 37oC Flow Rate 960 gpm 58 l/s 1030 gpm 62 l/s 78oF 26oC 98oF 37oC 960 gpm 58 l/s 1030 gpm 62 l/s Material Copper Copper Copper Power Output Gross Power Output 280 kW 280 kW 280 kW 205 kW Net Power Output Voltage/Frequency 260 kW 480 V / 60 Hz 265 kW 265 kW 190 kW 480 V / 60 Hz 480 V / 60 Hz 1160 gpm 70 l/s 1285 gpm 77 l/s 1 Power output at low resource temperatures and high condensing temperatures is derated due to evaporator flow limitations. If the resource temperature decreases from its design value (typically the value selected from the figures above), power output will decrease accordingly. This power output as a function of design flow rate for a single unit is described in Figure 8. When resource flow has decreased such that gross power output is less than 80 kW, the PureCycle power system will shut down. APPLICATION GUIDELINES Revision B – 09/23/2009 – Page 16 HTE66510PDF Image | Application Guide Hot Liquid to Electricity 280 kW Power
