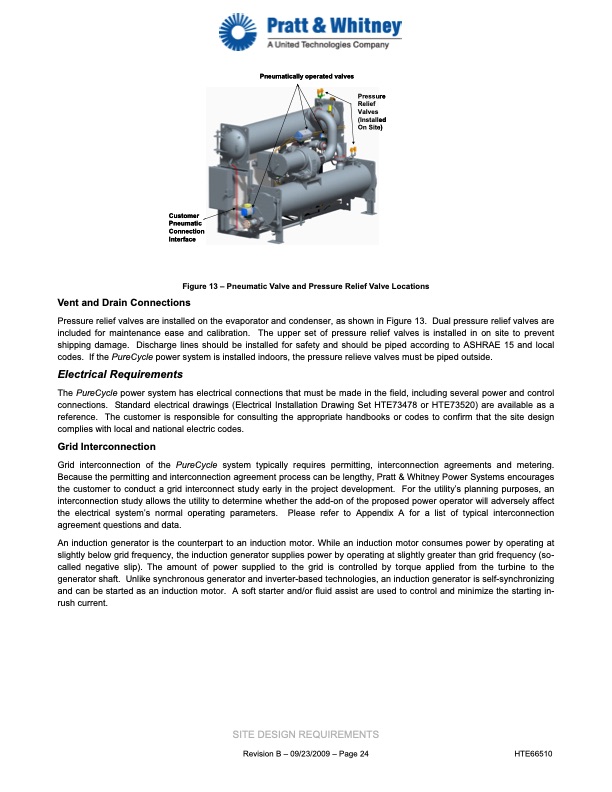

Pneumatically operated valves P Pr R Re V Va re e el al li s s s ie lv e s u f f ure ( led (I I O n n On n S s s v t e es ta al Si s it l l te e) Customer Pneumatic Connection Interface Figure 13 – Pneumatic Valve and Pressure Relief Valve Locations Vent and Drain Connections Pressure relief valves are installed on the evaporator and condenser, as shown in Figure 13. Dual pressure relief valves are included for maintenance ease and calibration. The upper set of pressure relief valves is installed in on site to prevent shipping damage. Discharge lines should be installed for safety and should be piped according to ASHRAE 15 and local codes. If the PureCycle power system is installed indoors, the pressure relieve valves must be piped outside. Electrical Requirements The PureCycle power system has electrical connections that must be made in the field, including several power and control connections. Standard electrical drawings (Electrical Installation Drawing Set HTE73478 or HTE73520) are available as a reference. The customer is responsible for consulting the appropriate handbooks or codes to confirm that the site design complies with local and national electric codes. Grid Interconnection Grid interconnection of the PureCycle system typically requires permitting, interconnection agreements and metering. Because the permitting and interconnection agreement process can be lengthy, Pratt & Whitney Power Systems encourages the customer to conduct a grid interconnect study early in the project development. For the utility’s planning purposes, an interconnection study allows the utility to determine whether the add-on of the proposed power operator will adversely affect the electrical system’s normal operating parameters. Please refer to Appendix A for a list of typical interconnection agreement questions and data. An induction generator is the counterpart to an induction motor. While an induction motor consumes power by operating at slightly below grid frequency, the induction generator supplies power by operating at slightly greater than grid frequency (so- called negative slip). The amount of power supplied to the grid is controlled by torque applied from the turbine to the generator shaft. Unlike synchronous generator and inverter-based technologies, an induction generator is self-synchronizing and can be started as an induction motor. A soft starter and/or fluid assist are used to control and minimize the starting in- rush current. SITE DESIGN REQUIREMENTS Revision B – 09/23/2009 – Page 24 HTE66510PDF Image | Application Guide Hot Liquid to Electricity 280 kW Power
