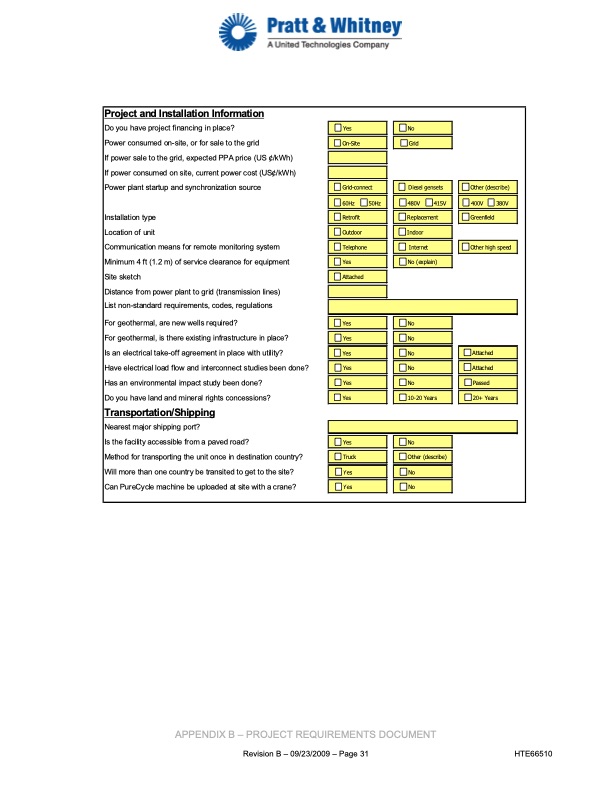

Project and Installation Information Do you have project financing in place? Yes No Power consumed on-site, or for sale to the grid On-Site Grid If power sale to the grid, expected PPA price (US ¢/kWh) If power consumed on site, current power cost (US¢/kWh) Power plant startup and synchronization source Grid-connect Diesel gensets Other (describe) 60Hz 50Hz 480V 415V 400V 380V Installation type Retrofit Replacement Greenfield Location of unit Outdoor Indoor Communication means for remote monitoring sy stem Telephone Internet Other high speed Minimum 4 ft (1.2 m) of service clearance for equipment Yes No (explain) Site sketch Distance from power plant to grid (transmission lines) List non-standard requirements, codes, regulations Attached For geothermal, are new wells required? Yes No For geothermal, is there existing infrastructure in place? Yes No Is an electrical take-off agreement in place with utility? Yes No Attached Have electrical load flow and interconnect studies been done? Yes No Attached Has an environmental impact study been done? Yes No Passed Do you have land and mineral rights concessions? Yes 10-20 Years 20+ Years Transportation/Shipping Nearest major shipping port? Is the facility accessible from a paved road? Yes No Method for transporting the unit once in destination country? Truck Other (describe) Will more than one country be transited to get to the site? Yes No Can PureCycle machine be uploaded at site with a crane? Yes No APPENDIX B – PROJECT REQUIREMENTS DOCUMENT Revision B – 09/23/2009 – Page 31 HTE66510PDF Image | Application Guide Hot Liquid to Electricity 280 kW Power
