Text from PDF Page: 027

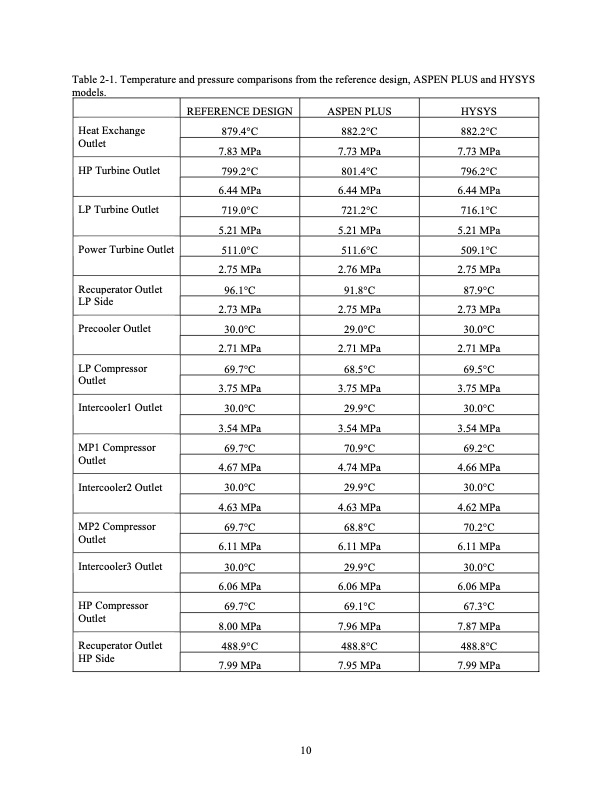

Table 2-1. Temperature and pressure comparisons from the reference design, ASPEN PLUS and HYSYS models. Heat Exchange Outlet HP Turbine Outlet LP Turbine Outlet Power Turbine Outlet Recuperator Outlet LP Side Precooler Outlet LP Compressor Outlet Intercooler1 Outlet MP1 Compressor Outlet Intercooler2 Outlet MP2 Compressor Outlet Intercooler3 Outlet HP Compressor Outlet Recuperator Outlet HP Side REFERENCE DESIGN 879.4 C 7.83 MPa 799.2 C 6.44 MPa 719.0 C 5.21 MPa 511.0 C 2.75 MPa 96.1 C 2.73 MPa 30.0 C 2.71 MPa 69.7 C 3.75 MPa 30.0 C 3.54 MPa 69.7 C 4.67 MPa 30.0 C 4.63 MPa 69.7 C 6.11 MPa 30.0 C 6.06 MPa 69.7 C 8.00 MPa 488.9 C 7.99 MPa ASPEN PLUS 882.2 C 7.73 MPa 801.4 C 6.44 MPa 721.2 C 5.21 MPa 511.6 C 2.76 MPa 91.8 C 2.75 MPa 29.0 C 2.71 MPa 68.5 C 3.75 MPa 29.9 C 3.54 MPa 70.9 C 4.74 MPa 29.9 C 4.63 MPa 68.8 C 6.11 MPa 29.9 C 6.06 MPa 69.1 C 7.96 MPa 488.8 C 7.95 MPa HYSYS 882.2 C 7.73 MPa 796.2 C 6.44 MPa 716.1 C 5.21 MPa 509.1 C 2.75 MPa 87.9 C 2.73 MPa 30.0 C 2.71 MPa 69.5 C 3.75 MPa 30.0 C 3.54 MPa 69.2 C 4.66 MPa 30.0 C 4.62 MPa 70.2 C 6.11 MPa 30.0 C 6.06 MPa 67.3 C 7.87 MPa 488.8 C 7.99 MPa 10PDF Image | Development Of A Supercritical Carbon Dioxide Brayton Cycle
