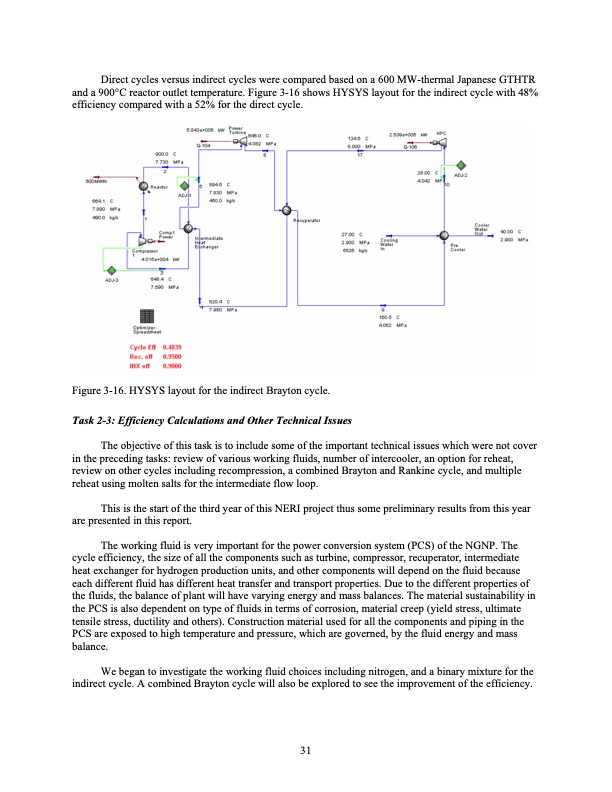

Direct cycles versus indirect cycles were compared based on a 600 MW-thermal Japanese GTHTR and a 900°C reactor outlet temperature. Figure 3-16 shows HYSYS layout for the indirect cycle with 48% efficiency compared with a 52% for the direct cycle. Figure 3-16. HYSYS layout for the indirect Brayton cycle. Task 2-3: Efficiency Calculations and Other Technical Issues The objective of this task is to include some of the important technical issues which were not cover in the preceding tasks: review of various working fluids, number of intercooler, an option for reheat, review on other cycles including recompression, a combined Brayton and Rankine cycle, and multiple reheat using molten salts for the intermediate flow loop. This is the start of the third year of this NERI project thus some preliminary results from this year are presented in this report. The working fluid is very important for the power conversion system (PCS) of the NGNP. The cycle efficiency, the size of all the components such as turbine, compressor, recuperator, intermediate heat exchanger for hydrogen production units, and other components will depend on the fluid because each different fluid has different heat transfer and transport properties. Due to the different properties of the fluids, the balance of plant will have varying energy and mass balances. The material sustainability in the PCS is also dependent on type of fluids in terms of corrosion, material creep (yield stress, ultimate tensile stress, ductility and others). Construction material used for all the components and piping in the PCS are exposed to high temperature and pressure, which are governed, by the fluid energy and mass balance. We began to investigate the working fluid choices including nitrogen, and a binary mixture for the indirect cycle. A combined Brayton cycle will also be explored to see the improvement of the efficiency. 31PDF Image | Development Of A Supercritical Carbon Dioxide Brayton Cycle
