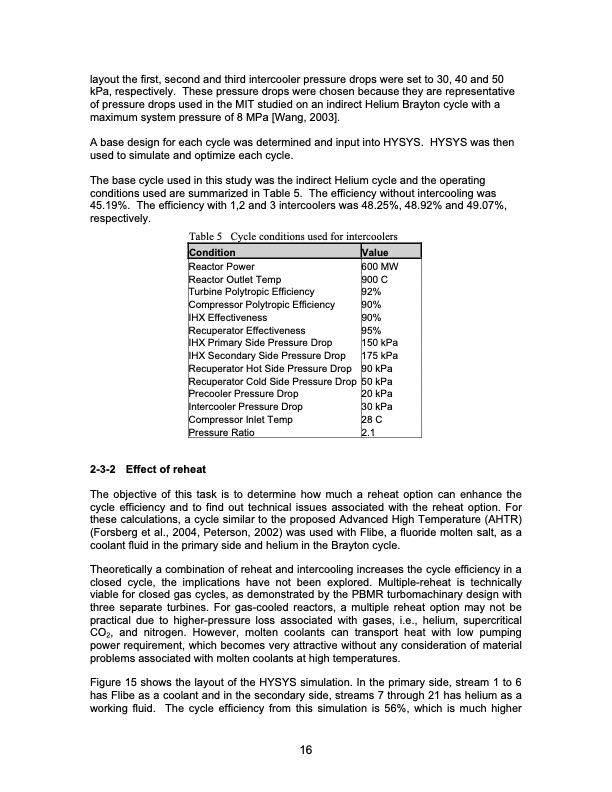

layout the first, second and third intercooler pressure drops were set to 30, 40 and 50 kPa, respectively. These pressure drops were chosen because they are representative of pressure drops used in the MIT studied on an indirect Helium Brayton cycle with a maximum system pressure of 8 MPa [Wang, 2003]. A base design for each cycle was determined and input into HYSYS. HYSYS was then used to simulate and optimize each cycle. The base cycle used in this study was the indirect Helium cycle and the operating conditions used are summarized in Table 5. The efficiency without intercooling was 45.19%. The efficiency with 1,2 and 3 intercoolers was 48.25%, 48.92% and 49.07%, respectively. Table 5 Cycle conditions used for intercoolers Condition Value Reactor Power Reactor Outlet Temp Turbine Polytropic Efficiency Compressor Polytropic Efficiency IHX Effectiveness Recuperator Effectiveness IHX Primary Side Pressure Drop IHX Secondary Side Pressure Drop Recuperator Hot Side Pressure Drop Recuperator Cold Side Pressure Drop Precooler Pressure Drop Intercooler Pressure Drop Compressor Inlet Temp Pressure Ratio 2-3-2 Effect of reheat 600 MW 900 C 92% 90% 90% 95% 150 kPa 175 kPa 90 kPa 50 kPa 20 kPa 30 kPa 28 C 2.1 The objective of this task is to determine how much a reheat option can enhance the cycle efficiency and to find out technical issues associated with the reheat option. For these calculations, a cycle similar to the proposed Advanced High Temperature (AHTR) (Forsberg et al., 2004, Peterson, 2002) was used with Flibe, a fluoride molten salt, as a coolant fluid in the primary side and helium in the Brayton cycle. Theoretically a combination of reheat and intercooling increases the cycle efficiency in a closed cycle, the implications have not been explored. Multiple-reheat is technically viable for closed gas cycles, as demonstrated by the PBMR turbomachinary design with three separate turbines. For gas-cooled reactors, a multiple reheat option may not be practical due to higher-pressure loss associated with gases, i.e., helium, supercritical CO2, and nitrogen. However, molten coolants can transport heat with low pumping power requirement, which becomes very attractive without any consideration of material problems associated with molten coolants at high temperatures. Figure 15 shows the layout of the HYSYS simulation. In the primary side, stream 1 to 6 has Flibe as a coolant and in the secondary side, streams 7 through 21 has helium as a working fluid. The cycle efficiency from this simulation is 56%, which is much higher 16PDF Image | Development of a Supercritical Carbon Dioxide Brayton Cycle: Improving PBR Efficiency and Testing Material Compatibility
