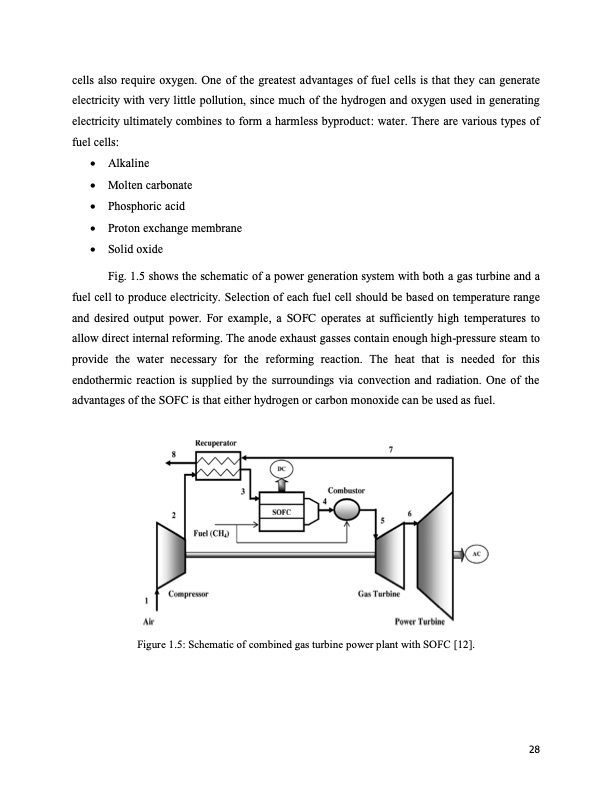

cells also require oxygen. One of the greatest advantages of fuel cells is that they can generate electricity with very little pollution, since much of the hydrogen and oxygen used in generating electricity ultimately combines to form a harmless byproduct: water. There are various types of fuel cells: Alkaline Molten carbonate Phosphoric acid Proton exchange membrane Solid oxide Fig. 1.5 shows the schematic of a power generation system with both a gas turbine and a fuel cell to produce electricity. Selection of each fuel cell should be based on temperature range and desired output power. For example, a SOFC operates at sufficiently high temperatures to allow direct internal reforming. The anode exhaust gasses contain enough high-pressure steam to provide the water necessary for the reforming reaction. The heat that is needed for this endothermic reaction is supplied by the surroundings via convection and radiation. One of the advantages of the SOFC is that either hydrogen or carbon monoxide can be used as fuel. Figure 1.5: Schematic of combined gas turbine power plant with SOFC [12]. 28PDF Image | Energy Systems for Multigeneration Purposes
