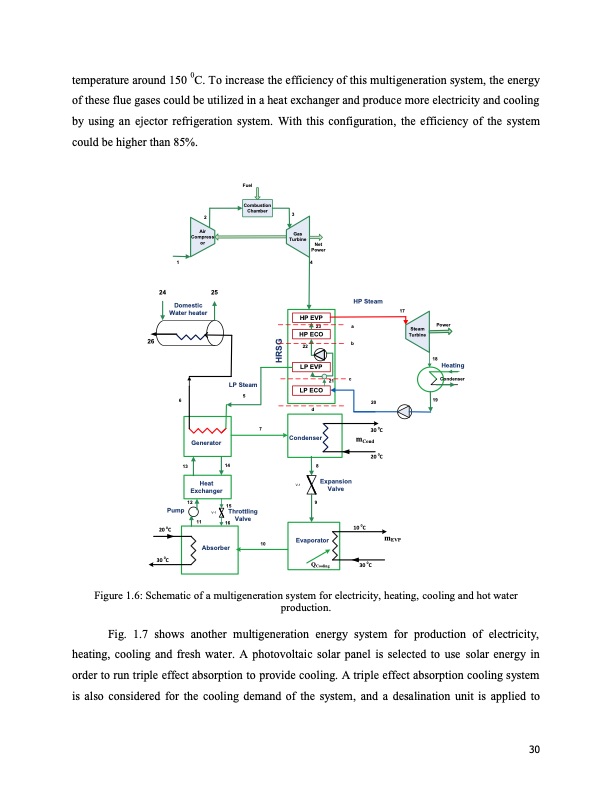

temperature around 150 0C. To increase the efficiency of this multigeneration system, the energy of these flue gases could be utilized in a heat exchanger and produce more electricity and cooling by using an ejector refrigeration system. With this configuration, the efficiency of the system could be higher than 85%. 24 25 2 Air Compress or Fuel Combustion Chamber 3 Gas Turbine Net Power 14 Domestic Water heater HP Steam a b 17 18 Heating HP EVP 23 HP ECO 22 LP EVP 21 LP ECO 26 Power Turbine Steam LP Steam c Condenser 20 0C 30 0C 10 Pump 12 9 15 5 6 2019 d 7 300C Generator 1314 8 mCond 20 0C mEVP 30 0C Heat Exchanger 11 10 0C V-1 Throttling 16 Valve Condenser V-1 Expansion Valve Absorber Evaporator QCooling Figure 1.6: Schematic of a multigeneration system for electricity, heating, cooling and hot water production. Fig. 1.7 shows another multigeneration energy system for production of electricity, heating, cooling and fresh water. A photovoltaic solar panel is selected to use solar energy in order to run triple effect absorption to provide cooling. A triple effect absorption cooling system is also considered for the cooling demand of the system, and a desalination unit is applied to 30 HRSGPDF Image | Energy Systems for Multigeneration Purposes
