Text from PDF Page: 054

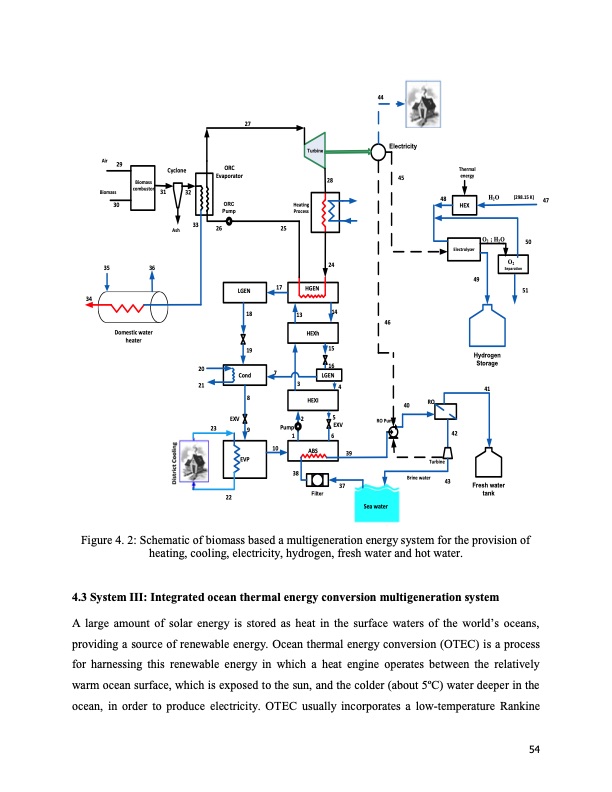

Air 29 Biomass 31 30 Cyclone 32 33 Ash ORC Evaporator 28 24 14 15 16 LGEN 4 45 Thermal energy 27 44 Electricity Turbine Biomass combustor ORC Pump Heating Process 13 7 3 2 Pump 16 48 H2O O2 ; H2O (298.15 K) 47 HEX 26 25 17 Electrolyser LGEN HGEN 34 49 Hydrogen Storage 41 35 36 Domestic water heater O2 Separation 50 51 20 21 18 19 8 9 46 HEXh Cond 23 42 EXV 22 5 EXV 37 RO Pump HEXI 40 RO Turbine 10 38 39 EVP ABS Figure 4. 2: Schematic of biomass based a multigeneration energy system for the provision of heating, cooling, electricity, hydrogen, fresh water and hot water. 4.3 System III: Integrated ocean thermal energy conversion multigeneration system A large amount of solar energy is stored as heat in the surface waters of the world’s oceans, providing a source of renewable energy. Ocean thermal energy conversion (OTEC) is a process for harnessing this renewable energy in which a heat engine operates between the relatively warm ocean surface, which is exposed to the sun, and the colder (about 5oC) water deeper in the ocean, in order to produce electricity. OTEC usually incorporates a low-temperature Rankine Filter Fresh water tank Sea water Brine water 43 54PDF Image | Energy Systems for Multigeneration Purposes
