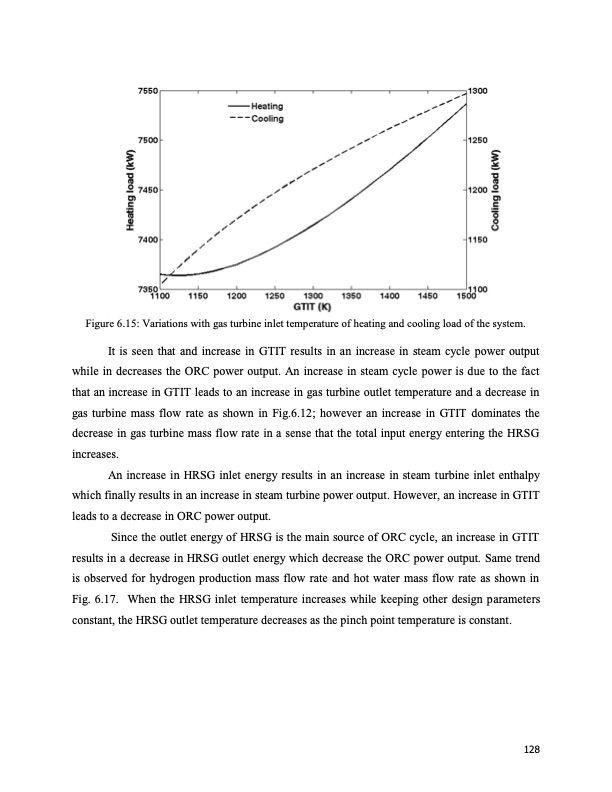

Figure 6.15: Variations with gas turbine inlet temperature of heating and cooling load of the system. It is seen that and increase in GTIT results in an increase in steam cycle power output while in decreases the ORC power output. An increase in steam cycle power is due to the fact that an increase in GTIT leads to an increase in gas turbine outlet temperature and a decrease in gas turbine mass flow rate as shown in Fig.6.12; however an increase in GTIT dominates the decrease in gas turbine mass flow rate in a sense that the total input energy entering the HRSG increases. An increase in HRSG inlet energy results in an increase in steam turbine inlet enthalpy which finally results in an increase in steam turbine power output. However, an increase in GTIT leads to a decrease in ORC power output. Since the outlet energy of HRSG is the main source of ORC cycle, an increase in GTIT results in a decrease in HRSG outlet energy which decrease the ORC power output. Same trend is observed for hydrogen production mass flow rate and hot water mass flow rate as shown in Fig. 6.17. When the HRSG inlet temperature increases while keeping other design parameters constant, the HRSG outlet temperature decreases as the pinch point temperature is constant. 128PDF Image | Energy Systems for Multigeneration Purposes
