Text from PDF Page: 164

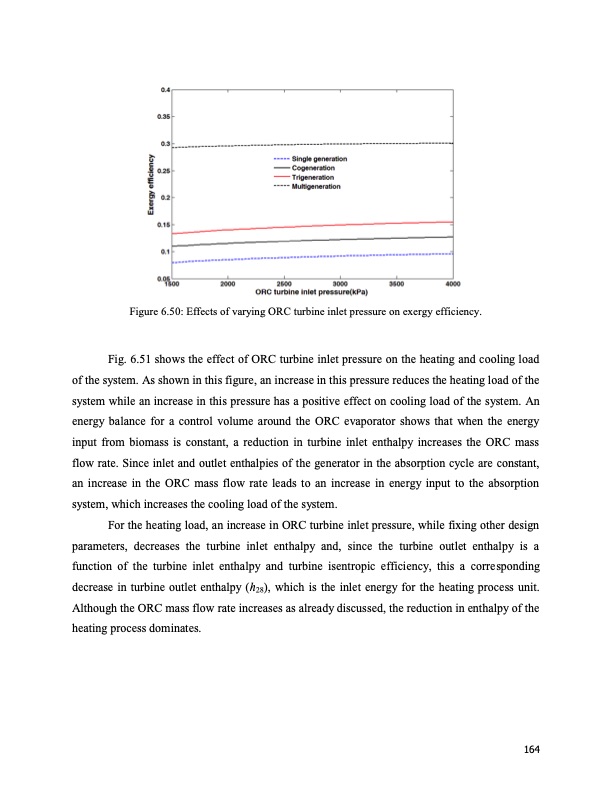

Figure 6.50: Effects of varying ORC turbine inlet pressure on exergy efficiency. Fig. 6.51 shows the effect of ORC turbine inlet pressure on the heating and cooling load of the system. As shown in this figure, an increase in this pressure reduces the heating load of the system while an increase in this pressure has a positive effect on cooling load of the system. An energy balance for a control volume around the ORC evaporator shows that when the energy input from biomass is constant, a reduction in turbine inlet enthalpy increases the ORC mass flow rate. Since inlet and outlet enthalpies of the generator in the absorption cycle are constant, an increase in the ORC mass flow rate leads to an increase in energy input to the absorption system, which increases the cooling load of the system. For the heating load, an increase in ORC turbine inlet pressure, while fixing other design parameters, decreases the turbine inlet enthalpy and, since the turbine outlet enthalpy is a function of the turbine inlet enthalpy and turbine isentropic efficiency, this a corresponding decrease in turbine outlet enthalpy (h28), which is the inlet energy for the heating process unit. Although the ORC mass flow rate increases as already discussed, the reduction in enthalpy of the heating process dominates. 164PDF Image | Energy Systems for Multigeneration Purposes
