Text from PDF Page: 173

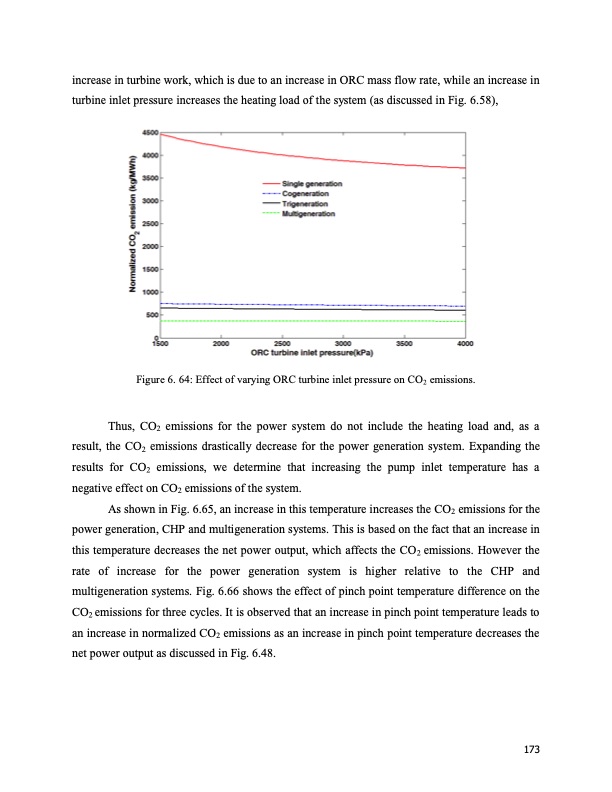

increase in turbine work, which is due to an increase in ORC mass flow rate, while an increase in turbine inlet pressure increases the heating load of the system (as discussed in Fig. 6.58), Figure 6. 64: Effect of varying ORC turbine inlet pressure on CO2 emissions. Thus, CO2 emissions for the power system do not include the heating load and, as a result, the CO2 emissions drastically decrease for the power generation system. Expanding the results for CO2 emissions, we determine that increasing the pump inlet temperature has a negative effect on CO2 emissions of the system. As shown in Fig. 6.65, an increase in this temperature increases the CO2 emissions for the power generation, CHP and multigeneration systems. This is based on the fact that an increase in this temperature decreases the net power output, which affects the CO2 emissions. However the rate of increase for the power generation system is higher relative to the CHP and multigeneration systems. Fig. 6.66 shows the effect of pinch point temperature difference on the CO2 emissions for three cycles. It is observed that an increase in pinch point temperature leads to an increase in normalized CO2 emissions as an increase in pinch point temperature decreases the net power output as discussed in Fig. 6.48. 173

PDF Image | Energy Systems for Multigeneration Purposes

energy-systems-multigeneration-purposes-173
