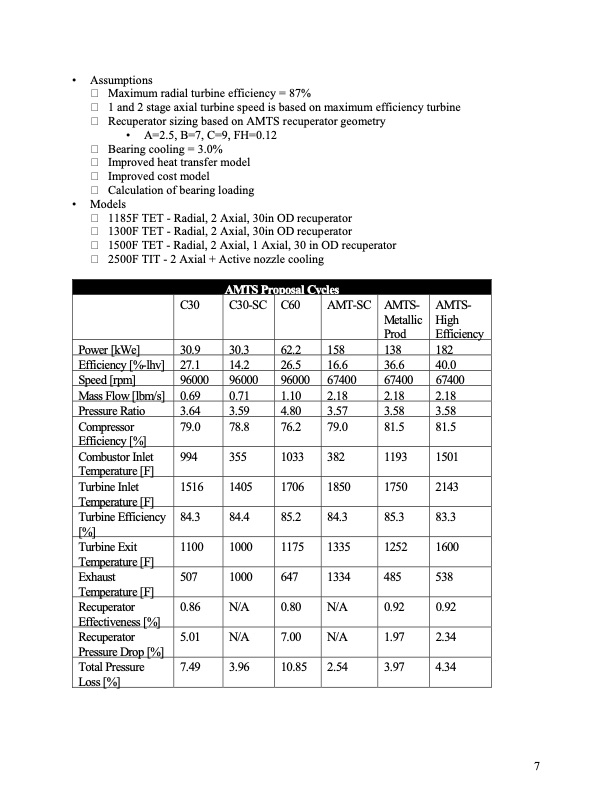

• Assumptions Maximum radial turbine efficiency = 87% 1 and 2 stage axial turbine speed is based on maximum efficiency turbine Recuperator sizing based on AMTS recuperator geometry • A=2.5, B=7, C=9, FH=0.12 Bearing cooling = 3.0% Improved heat transfer model Improved cost model Calculation of bearing loading • Models 1185F TET - Radial, 2 Axial, 30in OD recuperator 1300F TET - Radial, 2 Axial, 30in OD recuperator 1500F TET - Radial, 2 Axial, 1 Axial, 30 in OD recuperator 2500F TIT - 2 Axial + Active nozzle cooling AMTS Proposal Cycles C30 C30-SC C60 AMT-SC AMTS- Metallic Prod AMTS- High Efficiency Power [kWe] Efficiency [%-lhv] Speed [rpm] Mass Flow [lbm/s] Pressure Ratio Compressor Efficiency [%] Combustor Inlet Temperature [F] Turbine Inlet Temperature [F] Turbine Efficiency [%] Turbine Exit Temperature [F] Exhaust Temperature [F] Recuperator Effectiveness [%] Recuperator Pressure Drop [%] Total Pressure Loss [%] 30.9 30.3 27.1 14.2 96000 96000 0.69 0.71 3.64 3.59 79.0 78.8 994 355 1516 1405 84.3 84.4 1100 1000 507 1000 0.86 N/A 5.01 N/A 7.49 3.96 62.2 158 138 182 26.5 16.6 36.6 40.0 96000 67400 67400 67400 1.10 2.18 2.18 2.18 4.80 3.57 3.58 3.58 76.2 79.0 81.5 81.5 1033 382 1193 1501 1706 1850 1750 2143 85.2 84.3 85.3 83.3 1175 1335 1252 1600 647 1334 485 538 0.80 N/A 0.92 0.92 7.00 N/A 1.97 2.34 10.85 2.54 3.97 4.34 7PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
